Product Description

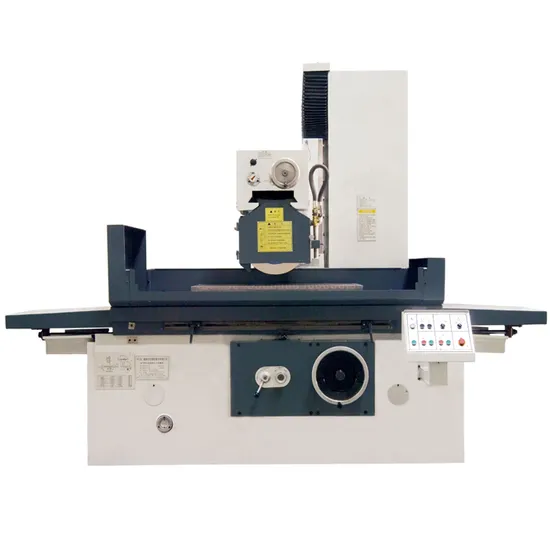

automatic vertical wheel head moving surface grinder machine M7163
Heavy Surface Grinder Machine M7163
Standard accessories:
Diamond dresser base, Wheel exactor, Balancing arbor, Foundation bolts and wedges, Brush, Electric magnetic chuck.
Optional accessories:
Wheel balancing stand, Diamond pen, Demagnetizer.
Heavy surface grinder machine M7163 surface grinder with good control box and the electrical parts adopted SIEMENS and other famous brand. The circuit is well designed insure more safety.
Feature:
The accuracy of this machine is 0.005mm and it can meet the routine machining job requirement.
The worktable longitudinal movement is driven by the vane pump, so that to make the movement stable and fluently with low noise.
The wheel head adopts the bearing bush structure, so that to handle the heavy duty machining job.
The machine gets the hydraulic auto feed and manual feed in cross feed unit, which is very convenient for operation. The wheel head vertical movement is controlled manually, it also equips with the rapid elevating unit to reduce the labor intensity and improve the working efficiency.
The machine not only works stable and performance reliable, but also gets the advantages of low noise, accuracy stable and easy operation.
Model | Unit | M7130 | M7140A | M7140A | M7140A | M7150A | M7150A | M7150A | M7163 | M7163 | M7163 |
x1600 | x2200 | x1000 | x1600 | x2200 | x1250 | x1600 | x2200 |
Worktable size(WxL) | Mm | 300x1000 | 400x1000 | 400x1600 | 400x2200 | 500x1000 | 500x1600 | 500x2200 | 630x1250 | 630x1600 | 630x2200 |
Max matching dimension(W x L) | Mm | 300x1000 | 400x1000 | 400x1600 | 400x2200 | 500x1000 | 500x1600 | 500x2200 | 630x1250 | 630x1600 | 630x2200 |
Max distance between spindle center | Mm | 575 | 600 | 700 |
lineand worktable surface |
Longitudinal moving speed of worktable | m/min | 5//25 | 3//27 |
T-slot number x W | Mm | 3x18 | 3x22 |
Wheel head | Continuous | m/min | 0.5-4.5 |
feed speed |
Cross moving | Intermittent | Mm/t | 3//30 |
feed speed |
| Hand wheel | Mm/gra | ------ | 0.02 | 0.01 |
feed |
Vertical | Rapid | Mm/min | | 400 |
Moving | speed |
of wheel head | Hand wheel | Mm/.gra | 0.005 |
feed |
Wheel Head | Power | Kw | 5.5 | 7.5 | 7.5 |
motor | Rotation | Rpm | 1440 |
speed |
Total power | Kw | 8.63 | 11 | 13.5 | 12.25 | 13.75 | 15.75 | 13.75 | 15.75 |
Max loading capacity | Kg | 470 | 620 | 1000 | 1380 | 700 | 1240 | 1410 | 1010 | 1290 | 1780 |
of worktable |
(with chuck) |
Chuck size(WxL) | Mm | 300x680 | 400x1000 | 400x800 | 400x1000 | 500x1000 | 500x800 | 500x1000 | 630x1250 | 630x800 | 630x1000 |
x1 | x1 | x2 | x2 | x1 | x2 | x2 | x1 | x2 | x2 |
Wheel size | Mm | 350x40 | 400x40 | 400x40x203 |
(ODxWxID) | x127 | x127 |
Machine | Cm | 286x154 | 311x182 | 494x182 | 674x182 | 311x190 | 514x190 | 674x190 | 399x220 | 514x220 | 674x220 |
dimension(LxWxH) | x203 | x223 | x223 | x223 | x242 | x242 | x242 | x242 | x242 | x242 |
Machine Weight | t | 3.49 | 5.01 | 6.51 | 7.6 | 5.78 | 7.32 | 8.78 | 6.86 | 7.85 | 9.65 |
