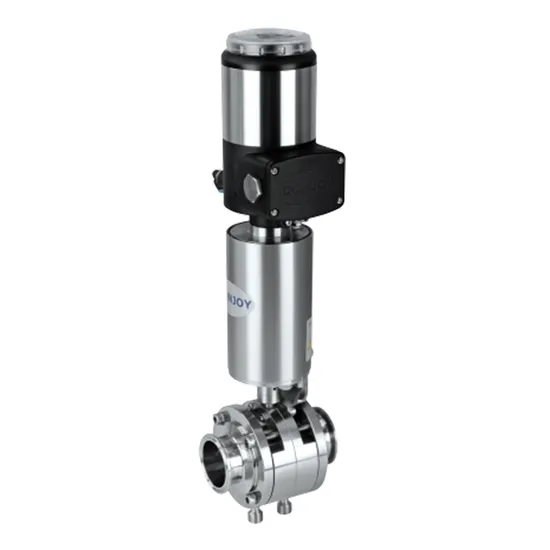

Sanitary Double Seal Mixproof Leakage Butterfly Valve with Control Top
| US$150.00-350.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VDF3
Connection Form
Clamp
Structure
Single-Eccentric Sealing
Seal Form
Force Sealed
Valve Stem
Double Seal
Work Pressure
Low Pressure (Pn<1.6mpa)
Working Temperature
-10~130 Degree Centigrade
Material of Seal Surface
Soft Sealed
Valve Body
Forge Welding
Standard
CE, ISO, FDA, 3A
Application
Sanitary Industry, Water Industrial Usage
Operation
Manual
Polish
Internal 0.6 Micrometer
Gasket
EPDM/Silicone/FPM
Size
DN10-DN300, 1/2′′-304′′
Material
Stainless Steel 304, 316L
Connection Type
Weld, Clamp, Thread, Flange
Max Pressure
10bar
Transport Package
Carton/Plywood Case
Specification
DIN/SMS/3A/ISO/IDF
Trademark
DONJOY
Origin
Wenzhou, Zhejiang, China
HS Code
8481804090
Production Capacity
200000PCS
Packaging & Delivery
Package Size
52.00cm * 30.00cm * 30.00cm
Package Gross Weight
15.000kg
Product Description
Sanitary Double Seal Mixproof Leakage Butterfly Valve with Control TopSpecification:
| Product Name: | Sanitary Double Seal Leakage Butterfly Valve with Control Top |
| Valve Body Material: | SS304/SS316L |
| Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| Max working pressure: | 10Bar |
| Available size: | DN10-DN300, 1/2"-12" |
| Max temperature | 120 ºC |
| Available connection: | Clamp/weld / thread/ weld thread/ flange |
| Available standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Manual, Pneumatic,Electric |
| Control: | Sensor, C-TOP, C-top controller(AS-I) |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Actuator application: | Stainless steel actuator/ Horizontal pneumatic actuator |
| Application scope: | Dairy, food, beverage, pharmacy, cosmetic, Chemical, etc |
| Packaging Details: | Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers. |
| Control | Sensor, C-TOP, c-top controller(AS-I) |
| Actuator | Pneumatic stainless steel actuator, pneumatic aluminium actuator, electric actuator |
| Delivery d etails: | Usually within 20 days after receiving T/T down payment |
Feature:
1. Donjoy manufacturing more than 31 years, which means we had upgraded and optimized many times, and solve the problem in advance to ensure the best performance and best application.
2. Manufactured more than 3millions pcs
3. Forged body, one-time CNC machining, guarantee machining precision.
4. Euro-imported gasket,meet FDA standard.
5. With hundreds of options for butterfly valves,manual type.
6. Have certificate of FDA,3-A ,CE.
Support control unit:
C-top-1721
Support PNP signal, AS-I, IO-Link.
DC24V
Connection:
Clamped, welded and threaded, flanged etc.
Packaging Details:
Bubble pack for each valve.
Outside packing is by carton or plywood case.
Delivery details:
Usually within 20 days after receiving T/T down payment.
Support control unit:
C-top-1721
Support PNP signal, AS-I, IO-Link.
DC24V
If you have any inquiry, please leave message below and "Click Send "
