China 8cbm Fire Truck 8tons City Fire Engine 10tons Fire Fighting Truck

Product Description

Product Description
Fire fighting truck, which is also called water fire engine,water foam fire truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker fire truck is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
Fire Fighting Trucks can be divided into several types:
1--According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
2--According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
3--According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
4--According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
5-There are also fire rescue truck with special purpose as follows,
--Foam supply fire truck;
--Compressed air supply fire fighting truck;
--Water tower fire truck ;
--Earthquake rescue fire truck;
Specification

Description	Parameters
Overall Dimension	7660×2500×3460
GVW	15560kg
Engine Model	WD615.47
Engine Power	273kW
Wheelbase	5200/5600 mm
Driving Type	4X2
Max.speed	90km/h
Emission Standard	9726 ml
Passengers	1+1+4
Fire pump rated flow	60L/s@1.0Mpa;
water monitor rated flow	48-64L/s
Water monitor range	Water range≥60m,foam≥55m
Approach angle	≥16°
Departure angle	≥23°
Water tank capacity	8-10CBM
Foam tank capacity	0-2CBM
Fire pump model	CB10/60
Pressure gauge	0-1.6 Mpa, 0-2.5 MPa
Water monitor	PL48

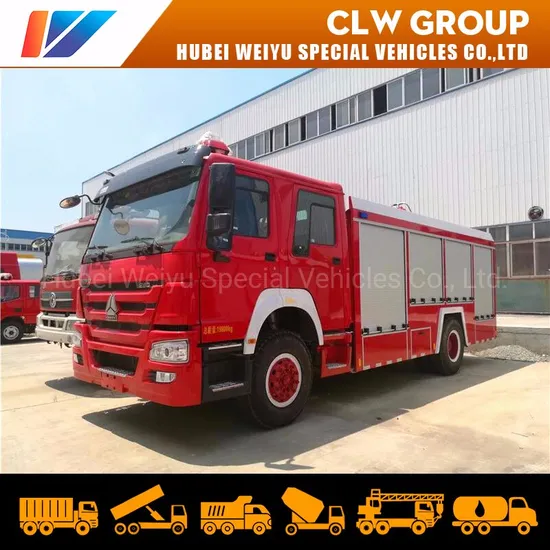

Reference Picture
Equipment come with fire trucks
Production Procedure
Successful Case
Customer Inspection
Overseas Exhibition and After-sales Service
Contact Jacky for more details
