Advanced Concrete Placing Boom for Effective High-Rise Building Projects

Product Description

Product Description

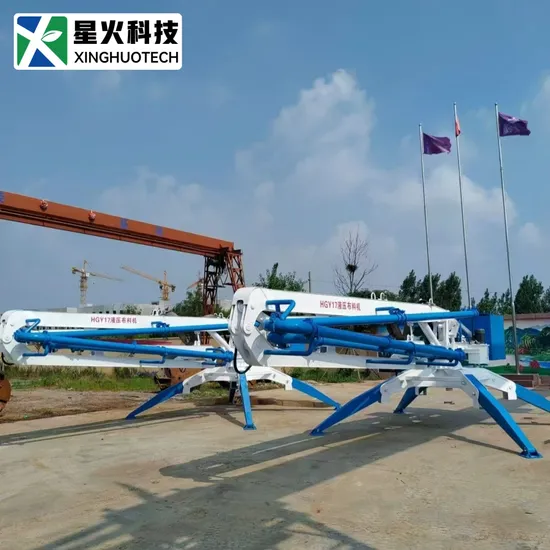

The hydraulic concrete placing boom is a cutting-edge innovation in the realm of intelligent concrete placing booms, surpassing traditional models. This revolutionary equipment addresses common operational challenges, reduces labor costs, and significantly enhances pouring efficiency.
1. Featuring state-of-the-art boom technology, this advanced boom utilizes a sophisticated "Z"-shaped folding design. It offers a remarkable 360° full rotation capability and can seamlessly perform pitching, luffing, extension, and folding maneuvers with unparalleled precision.
2. Unaffected by the dimensions or configurations of construction levels, it adapts effortlessly to diverse construction floors and meets the demands of complex site conditions.
3. Its compact architecture allows for effortless lifting and relocation without the need for fixation. It can be swiftly transported to any desired pouring site using lifting equipment, and it is versatile enough to be stationed on floors, platforms, or simple setups, offering exceptional flexibility and mobility.
4. Boasting straightforward operation, rigorous safety protection, and cost-effectiveness, this type of distributor machine is particularly tailored for application in high-rise and super high-rise buildings that incorporate shafts.
Product Parameters

Items	HGY13	HGY15	HGY17	HGY21
Max. working radius	13m	15m	17m	21m
Tilt working range	0°~90°	0°~90°	0°~84°	0°~84°
Slewing angle	360°	360°	360°	360°
Motor power of hydraulic system	4kw	4kw	5.5kw	22kw
Working pressure of hydraulic system	20Mpa	20Mpa	20Mpa	32Mpa
Control mode	Cable/Radio remote	Cable/Radio remote	Cable/Radio remote	Analog quantity /Switching value remote control
Concrete pipe specification	∅125	∅125	∅125	∅125
Length of hose at arm end	3m	3m	3m	3m
Outrigger span	4000*4000mm	4000*4000mm	4230*4230mm	5170*5170mm
Boom open way	Three R type	Three R type	Three R type	Three R type
Length of Boom	5330/4330/3330mm	6000/5000/4000mm	6670/5720/4610mm	8362/6787/5854mm
Self weight/Total weight including counterweight	2.7/4.3 t	3.23/5.43 t	2.7/4.9 t	4/6 t

Our Advantages
Good brand image: Since its inception, the company has maximized its advanced technical arsenal and professional edge. By leveraging capital, technology, strategic management, state-of-the-art equipment, and talent, the company faithfully upholds its enduring philosophy. "Tailoring to specific needs" distinguishes our commitment to customer service excellence. Excellent staff team: The company prides itself on having a stellar team of highly skilled and seasoned professionals who bring an exemplary work ethic to every task. Reputation and service-oriented: Thanks to robust economic performance and a well-earned reputation for service excellence, we have garnered enduring trust and admiration from a vast array of domestic and international enterprises. Comprehensive management system: With years of experience and accumulated wisdom, the company has developed a robust management framework, boasting comprehensive institutional structures and standardized operational workflows. Packaging & Shipping
Customer Case
After Sales Service
FAQ
Q: What value-added services can your company provide?
A:(1)After receiving your message, our project consultant will contact you within two hours to understand your project requirements.We have professional technical managers who can provide 2-3 sets ofsolutions for you according to your project with pictures, videos, parameters, configurations.Our engineers can provide different configurations according to your needs. (2)During normal technical and business communication, we can also provide free updates on equipment progress, free production supervision, and offer the most cost-effective packaging and shipping solution.
Q: How to ensure product quality?
A: Our company has obtained management system certifications such as ISO9001, ISO45001, ISO14001, etc. All machines are carefully inspected and quality controlled in strict accordance with Chinese national standards and international standards. Before shipment, we will test and inspect the equipment again to ensure that every machine we deliver to our customers has good performance.
Q: How to install, operate, and use the equipment?
A: Our company can provide free installation and operation videos. We have a professional after-sales service team, and our after-sales engineers provide installation and debugging training guidance to ensure that you have no worries when purchasing and using the machine.
Q: What after-sales services can you provide?
A: Our after-sales engineers can provide online technical guidance remotely at any time; (2) Due to non-human factors, the warranty period is 12 months after leaving the factory. If the spare parts are damaged due to product quality issues during the warranty period, we provide free spare parts and provide remote technical guidance; (3) Provide paid accessory supply beyond the warranty period.
