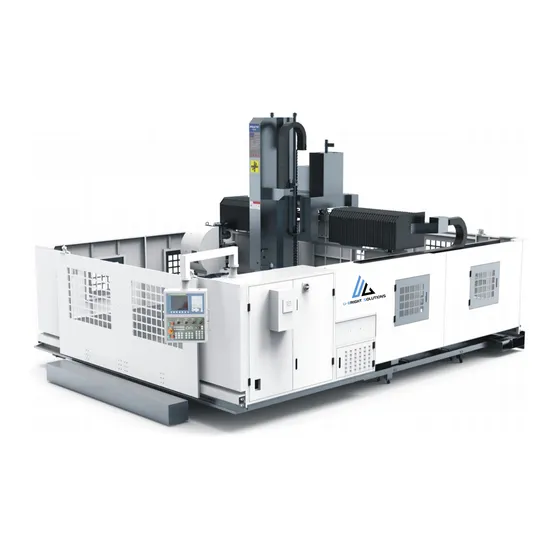

High Accuracy CNC Column Bridge Type Moving Column Beam Gantry Milling Machine Center
| US$5,500.00-19,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
PHA-CNC 3000
Type
Knee-and-Column Milling Machine
Object
New Energy Vehicle Battery Trays
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Taper Hole of Spindle
Bt40 Od: 120mm
X Route or Distance of Travel
3000-6000 (Other Length)
Y Route or Distance of Travel
2000mm
Z Route or Distance of Travel
800 mm
Operating System
Fanuc Siemens
Transport Package
Plywood Case
Trademark
Ubright
Origin
Cn
HS Code
8457101000
Product Description
Product DescriptionThe machine for column mobile processing center, the whole machine adopts moving column, ensure the overall rigidity and compact structure, machine rigidity is good. Easy to dispose of scraps and drainage. Good precision retention, can be used for precision cutting;automotive, textile, window frame, civil aviation, motor, valve and other industries.
Applied to new energy vehicle battery trays, rail transit, mechanical manufacturing, and sheet metal processing
PHA series
PHA-CNC3000
PHA-CNC6000
(Other lengths can also be customized)
Y-axis travel 2000mm
Z-axis travel 800mm
The entire series adopts BT40 spindle tapered holes, with a spindle outer diameter of 140mm
Equipped with a disc type 24 tool magazine capacity
Equipped with automatic chip removal system
Equipped with automatic cooling system
Product Parameters
| route or distance of travel | X route or distance of travel | 3000-6000 (other length) |
| Y route or distance of travel | 2000mm | |
| Z route or distance of travel | 800mm | |
| principal axis | main shaft speed | 10000rpm (20000rpm electric spindle) |
| taper hole of spindle | BT40 OD: 120mm | |
| tool magazine | Knife library form | disc type |
| Knife library capacity | 24 pcs | |
| Adjacent change knife time | 2 sec | |
| translational speed | X/Y axis shift | 40/50 m/min |
| Z axis shift | 20 m/min | |
| Cut into give speed | 15000 mm/min | |
| operating system | FANUC | SIEMENS |
| Spindle drive motor | 7.5 kw | 11 kw |
| X drive motor | 3.0+3.0 KW | 3.1+3.1 KW |
| Y / Z drive motor | 3.0/3.0 KW | 3.1/3.1KW |
| lube oil system | self-lubricate | |
| coolant passage | injection water cooling | |
| definition | X axis positioning is accurate | 0.05 mm (Rating 0.01mm) |
| The Y / Z is positioned precisely | 0.03/0.02 mm | |
| Repeat repeat precision (X / Y / Z) | 0.01mm | |
| rating of machine | Pressure demand | 6 kg/cm² |
| altitude | 3900 mm | |
| floor space | 6200-20000*4400 mm | |
| weight | 17000-40000kg | |
