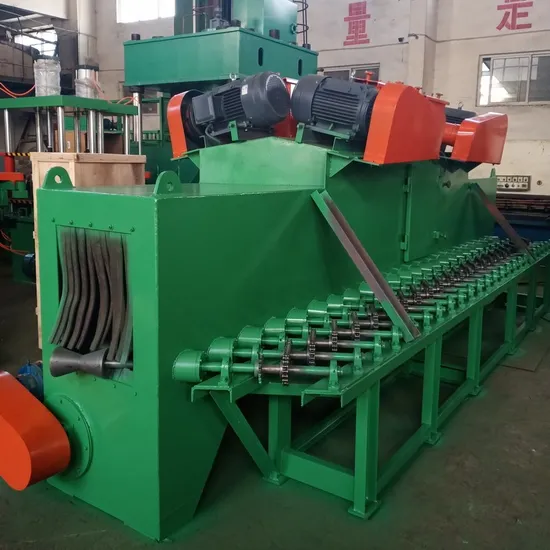

LPG Cylinder Production Revalidation Line Shot Blasting Machine

Product Description

LPG Cylinder Production Revalidation Line Shot Blasting Machine
1. Application:
The Shot Blasting Machine is suitable for shot blasting to the surface of all sort of cylinder with diameter of Φ220-420mm
2. Features:
a. Reasonable structure design
b. Simple operation
c. High efficiency
d. Low production cost
3. Working principle
When the LPG cylindes are fed into the projecting area of the cleaning room by an electrically controlled variable-speed-conveyor roller, the cylinder body are hit and rubbed by several powerful impeller heads. The oxidized rust layer and dirt on it are quickly peeled off, and the steel surface has a smooth surface with a certain roughness. The projectiles and rust dust fallin on the cylinder are transported to the projectile circulation system through the recovery screw, and the worhpiece are loaded and unload on the rollers on both sides of the cleaning room.
During the cleaning process, the dropped dust mixture is collected in the lower part of the elevator through the funnel of the chamber and the vertical and horizontal screw conveyor, and then lifted into the seperator in the upper part of the machine. The seperated pure pellets fall into the seperator hopper for cycled supply. Dust generated during shot blasting is sent to the dust removal system by the exhaust pipe. The purified gas is discharged into the atmosphere, however, particulated dust is captured and collected.
4. Composition
The machine is mainly composed of a cleaning room, an indoor conveyor roller and an in-and-out conveyoring roller, impeller heads, a projectile circyling system (including a hoist, a seperator, a vertical and horizontal spiral conveyor, and a pellet supply pipeline), a blowing device, and a dust romoval system, electrical control and so on.
5. Main Technical Data

Workpiece dimension	Φ220-420mm
Work rate	80-120 pcs/hour
Impeller head	4 sets
Shotblasting Capacity	4*2.5T/min
Impeller head power	4*11 KW
Elevating Capacity	15 T/hour
Elevator Power	4 KW
Seperating Capacity	70 T/h
Seperator Power	4 KW
Total Power(Excludes Dusting Device)	26 KW
Surface Cleaning Grade	Sa2-2.5
Total Ventilation Quantity	8500 m3/h
Machine Dimension	7450*4100*5906 mm

6. LPG Cylinder Production Flow Chart
7. LPG Cylinder Revalidation Line
8. Company Introduction
Established in 1983, Taizhou Yuehai Manufacturing Co., Ltd is specialising in design, manufacturing, testing, assembly and commissioning of LPG Cylinder Production & Re-validation Line and LPG& LNG & Liquified Gas Storage Tanks.
With more than 30 years' development, LPG Cylinder production line manufactured by Taizhou Yuehai are not only sold well in China, but also exported to more than 20 countries, such as Egypt, Kenya, Uganda, Libya, the Sudan, Nigeria, Iran, The philippines, Vietnam, Malaysia, Indonesia, Bangladesh, Guatemala, Cuba, and so on.
Our value is to provide high- quality products to our demestic and overseas cleants.
Our business principle is to hour our contract and keep our promise.
Our main speciality is we manufacture complete lpg cylinder production & revalidation line.
9. Our Company
10. Production Machines
11. Our Service
<> Pre-sales Consulation
<> Factory visit available
<> Machines Demonstration
<> Reasonable configuration
<> Fast delivery
<> One-year gurantee
<> On-site Installation and training
<> Help with trial production
<> Fast After-sales technical support
<> Fast spare parts delivery
<> Fast die delivery
<> Logo and colors of machine can be customized
12. Overseas Installations
13. Clients' Workshps
14. We need to know the following information before quotation:
<> Technical drawing of cylinders you plan to produce
<> What specification of cylinder you plan to produce( 6 kg, 12 kg or others)?
<> What diameter and thickness of cylinder you plan to produce?
<> Are you green in the line or you have had some machine in your workshop?
<> How many cylinders will you plan to produce in 8.5 hours?
The machine can be customized according to your requirement. It is not only used for lpg cylinder surface treatment, but also can be used for other metal surface treatment.
