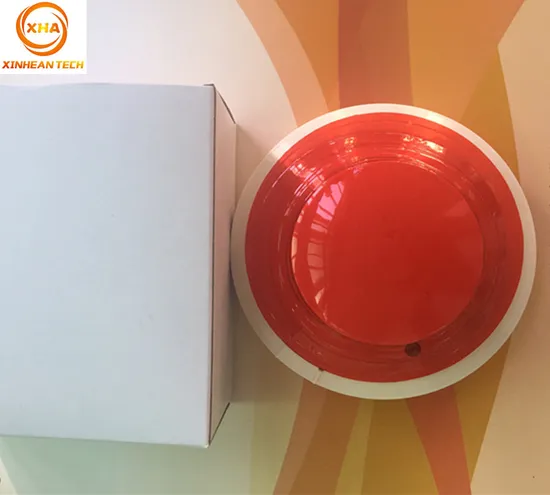

Conventional Smoke Alarm Detector for Fire Alarm System
Basic Info.
Model NO.
CA9001K
Types of Smoke Detectors
Photoelectric Smoke Style
Product
Fire Roller Shutter Smoke Detector
Wired
Non-Polarity 2 Wired
Application
Conventional Fire Alarm System
Transport Package
Carton
Specification
100mm*52mm
Trademark
XHA
Origin
China
Production Capacity
10000/Month
Product Description
Introduction
CA9001K photoelectric smoke fire detector adopts non-polar signal two-bus communication mode, which can be used for smoke detection in the control box of fire shutter door/fire rolling shutters, and can also be connected to the circuit of various fire alarm controllers produced by our company to realize smoke detection and early alarm monitoring functions.
Parameters
| Product Name | Conventional Smoke Detector | Loop Bus wired | Non-polarity 2 wired. |
| Nominal Votage | DC 24V | Work Voltage | DC12V~DC24V |
| Monitor Current | ≤350uA | Alarm Current | ≤2mA |
| Led Indicator | Monitor Status: Red led flash slowly. Alarm Status: Red led always light on | Operating Environment | Temperature -10°C~+50°C Humidity ≤95%. |
| Dimensions | φ100mm×520mm | Product standard | GB4715-2005 |
Product Range
Addressable fire alarm system
Wireless alarm system
Electrical fire monitor system
Extinguishing control system
Fire door monitor system
Standalone smoke detectors and combustible gas detector
4-wire smoke detectors with relay output.
Service
1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 15 working days lead time.
5. Welcome sample order.
