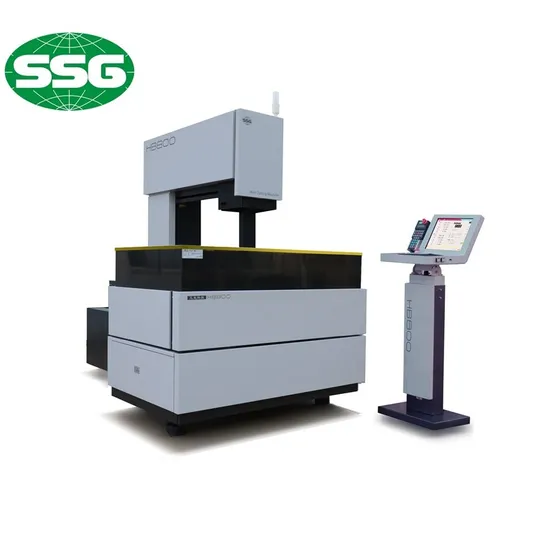

Hb800 5 Axis AC Servo Motor CNC Machining Tool Wire Cutting Machine EDM

Product Description

Product Features

1.Multi-cutting function 2.Best roughness Ra<0.6um 3.Max.cutting speed hit 300mm2/min 4.With advanced and particular pluse power, gets lower loss.The diameter of wire wore 0.005mm in 200000mm2 cutting. 5.Professional high-quality industry computer and international brand parts makes the products good performance. 6.X/Y/U/V/Z adopt Japanese Mitsubishi AC servo driver and motor,which have stable and reliable performance 7.High precision ball screw and linear guide-way improve the positioning precision of the machine tool and realize the function of pitch compensation 8.High-strength resin castings ensure the machine body having enough rigidity and strength 9.Handy control

Our Advantages
On the basis of retaining the original advantages of high precision, high reliability and easy operation, HAUP series has comprehensively upgraded the appearance and protection of the whole machine.HAUP series control more simple, more fashionable appearance, equipped with high-performance numerical control system, the performance indicators on the basis of the original to obtain a qualitative leap.
Comprehensively meet the latest national standard for medium-speed wire cutting EDM ( JB/T11999.1-2014 )Forward-looking design concept and wide use of low-speed wire cutting technologies ensureunprecedented machining performance and realize machining reliability and consistency on thebasis of high efficiency.


Product Parameters

Machine type	HB800
Worktable dimension(L×W)	1710×935mm
Worktable travel(X×Y)	800×600mm
Max.part weight	2000kg
Max.workpiece thickness	500mm
Max.taper angle/height	±10°/100mm
Max.machining speed	300mm2/min
Max. machining currents	12A
Best roughness	Ra≤0.6µm
Diameter of wire	0.1~0.20mm
Machine tool dimensions(W×D× H)	2585mm×2535mm×2600mm
Machine weight	4000Kg

Detailed Photos
CNC Workshop
Machining Features
Checking Instrument & Equipment Fitting Shop

Trial Processing Work Shop
Send us your material with drawings, we can do the sample for you to check whether it is OK for you.
Packaging & Shipping

Company Profile
Suzhou Sanguang Science&Technology Co., Ltd. is a research and development, manufacturing, production, sales, service as one of the high-tech enterprises, is a leading enterprise specializing in the production of CNC electrical discharge machine tools . The company is located in the scenic Suzhou National High-tech Industrial Development Zone, headquartered in No. 145 Songshan Road, Suzhou New District.
Company product line "SANGUANG" brand includes Brass wire cut EDM, Molybdenum wire multi-cutting EDM, Die-Sinker EDM and Small hole drill EDM. Taking advantage of the brand advantage of "Sanguang Brand", it integrates the characteristics of international mainstream machine tools in the design and manufacture, relies on stable quality, reliable performance and humanized operation mode, which is favored by various users . In addition to having a stable market in China, the products are also exported to the United States, Germany, Turkey, Sweden, Japan, South Korea, Australia, Poland, Hesigo, Saudi Arabia. Iran, Brazil, South Africa, Colombia, Malaysia, Thailand, India, Vietnam ect.
Comapny History
1966 : Suzhou No.3 Optical InstrumentFactory
1968 : Started to research Molybdenum wirecut EDM machines with photoelectric tracing
1969 : Developed and produced GDX-1model
1982 : Developed and produced SSX-3molybdenum wire cut EDM machine based onSingle-board machine controller
1984 :DK7725D machine won the NationalSliver Medal
1989 : The company entered into partnership with COSMOS international MachineryCo.,Ltd Hongkong to set up a joint venturecalled Suzhou Sanguang Electric MachineryCo. Ltd
1994 : Sodick Co.,Ltd Japan entered intopartnership and the name of the companywas changed into Suzhou Sodick-SanguangElectric Machinery Co.,Ltd
1995 : Started to research and producedDK7632 Brass wire cut EDM machine
2008:Relocated at No.145 SongshanRoadSND China, plant area 38060m²
2010 :Multi-cutting molybdenum wire cutmachine, HA series were released
2012 :The latest Brass wire cut machine, LA series were released
2014 :Became a public company , stockcode :430414
2016 :Developed and produced HB400,whichwon IF award of 2017
2018 :Released the latest Linear Motor machine HB400L
