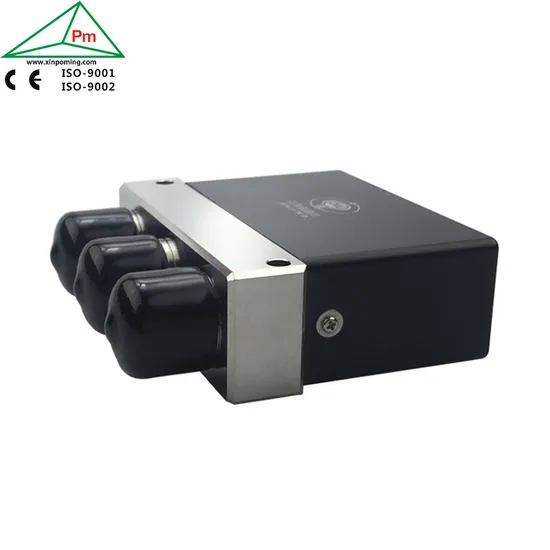

DC-12.4GHz Spdt-N Electromechanical Relay Switch J720n Remote Control Pin Diode Switches Failsafe or Latching Type for RF Industry

Product Description

Technical Parameters.
In order to give you the best price, please kindly specify your requirements as clearly as possible.
OEM and ODM is welcome, we have professional and experienced engineer team for you.
Features:
High Performance High Reliability Low Insertion Loss High Isolation Applications:
Radar Systems Communication Systems Receiving Systems
Electrical Specification:

Connector	Frequency Range (GHz)	VSWR	Insertion Loss (max)dB	Isolation (min)dB	Impedance (Ω)
		(max.)
N Female	DC-1	1.1	0.1	80	50
	1-2	1.15	0.15	80
	2-3	1.25	0.20	75
	3-6	1.35	0.40	70
	6-12.4	1.50	0.50	60

Parameter		Min.	Typ.	Max	Units
TTL input	High Level	2.2 to 5.5V(TTL Option)			Vdc
	Low Level	0 to 0.8V(TTL Option)
Switching time(max)		20			ms
Connector		N-Female
Temperature Range		-25 to +65			0C
Operation Life (cycles)		1,000,000(Standard)
Vibration (operating)		10G RMS, 20-2000Hz
Mechanical Shock (non-operating)		50G, 1/2Sine, 11msec
Weight(approx.)		/

Solder Pins	Latching				Failsafe
	With TTL		Without TTL		With TTL		Without TTL
	J1-COM	J2-COM	J1-COM	J2-COM	J1-COM	J2-COM	J1-COM	J2-COM
Pin 1	VCC	VCC	VCC	VCC	VCC or /	VCC	VCC or /	VCC
Pin 2	GND	GND	/	/	GND or /	GND	/	GND
Pin 3	TTL	/	GND	/	/	TTL	/	/
Pin 4	/	TTL	/	GND	/	/	/	/

9 Pins D-Sub Pinout
Failsafe	Pin No.	1	2	3	4	5	6	7	8	9
	Pinout	A1/V1 (J1-COM)	/	GND	/	1(IND)	2(IND)	GND-I(IND.)	/	VCC
Latching	Pin No.	1	2	3	4	5	6	7	8	9
	Pinout	A1/V1 (J1-COM)	A1/V2 (J2-COM)	GND	/	1(IND)	2(IND)	GND-I(IND.)	/	VCC

Package and Shipment Details:
1) Neutral Master Carton Package;
2) Customized Package;

Product Equipment Line:
Quality Controls:
With more than 10 years experience, we produce A-Grade voltage stabilizer/regulator and can offer OEM & ODM service.
All our products have CE certificate and some have obtained patent.
About us
Shenzhen Xin Poming Power Equipment Manufacturing Co., Ltd is established in Guangdong Province of China in 2007, which manufactures and sells voltage regulators, transformers, UPSs, frequency converter, DC power sources and other power products and can provide systemic power solutions for customers with it's complete product list For clients around the world .
Clients
FAQ(Frequent Asked Qestions) Q: What RF switch configurations are available?
A: Below are our popular configurations for your reference, besides, we accept customization.
Electro-mechanical switches: 1P2T (single-pole, double-throw); 1P3T; 1P4T; 1P6T; 1P8T; 1P12T
Solid-state switches: 1P1T; 1P2T; 1P3T; 1P4T; 1P6T; 1P8T; 1P10T; 1P12T; 1P16T
Q: What control options are available?
A: Depending on model, EM RF switches offer TTL logic-level control, or +12, +15 or +28 V DC control. Solid-state switches use TTL logic levels, and one model has a USB interface.
Q: Are the RF switch attenuators bi-directional?
A: All of XINPOMING's RF switches are bi-directional unless noted differently on the specification sheet.
Q: I need a custom RF switch designed. How much are your typical NREs (non-recurring engineering charges)?
A: XINPOMING does not charge NREs. Please send your custom requirement to us for details communication.
Q: Are your 18GHz electro-mechanical switches available with indicators or as latching?
A: Typical options: latching, self-terminating, indicators, TTL, RoHS and non-RoHS.
