Molded Press Wood Pallet Making Machine for Wooden Pallet

Product Description

Product Description

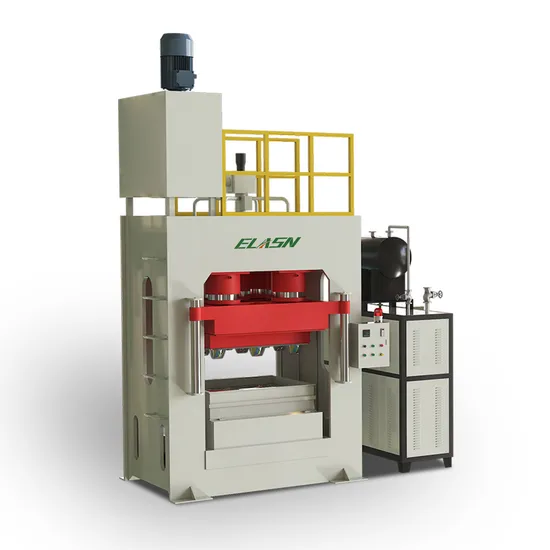

Molded Press Wood Pallet Making Machine for Wooden Pallet
The compressed wood pallet machine is used for pressing and forming wood chips, straw, waste chemical fiber, and other raw materials. There is an independent hydraulic system in this equipment.
Molded Press Wood Pallet Making Machine for Wooden Pallet
The compressed wood pallet making machine has the advantages of good stability performance, high efficiency, and energy saving. What is more, the compressed wood pallet is fumigation free and has no limit for international transportation.
Molded Press Wood Pallet Making Machine for Wooden Pallet
The press machine can use both the steam and the thermal oil as a heating source.
Molded Press Wood Pallet Making Machine for Wooden PalletThe pallet press machine is very convenient for installation and does not need basic positioning. You can produce different wood pallet sizes and pallet designs by changing the mold.
Molded Press Wood Pallet Making Machine for Wooden Pallet
The pictures of wood pallet making machine different molds :
Product Parameters

Model	ELA-800T
Pressure	800T or customized
Main cylinder	Φ320,4 sets
Pilot oil cylinder	Φ100,1 set
Lift cylinder	Φ100,2 sets
Main motor power	7.5KW
Press stroke	550mm
Capacity	130-160Pcs/Day
Mold type	less than 1300*1250mm or customized
Heating type and capacity	Steam or thermal oil,0.15 Cubic metre
Machine size	2300*1500*4300mm
Machine weight	12700kg

Product Features
Features of our compressed wood pallet making machine:

1. Our wood pallet machine has a good structure, it uses three-way synchronous positioning, precision, and balance, the pressurize will be soon when filling, and the pressurize will be fine within 35 seconds.
Molded Press Wood Pallet Making Machine for Wooden Pallet
2. It is easy to operate, just press the work button, and then the machines will complete the whole process automatically.
Molded Press Wood Pallet Making Machine for Wooden Pallet
3. It takes about 450 seconds to mold a tray.
Molded Press Wood Pallet Making Machine for Wooden Pallet
4. The machine can produce about 130-160 PCS pallets per day.
Molded Press Wood Pallet Making Machine for Wooden Pallet
5. The density of the pallet is about 900kg per cubic meter.
Molded Press Wood Pallet Making Machine for Wooden Pallet
6. The machine can be customized.
Whole Production Line
One completed pressed wood pallet line includes a press, wood chopper, dryer, glue mixer, storage tank, etc. The production lines have been proved to be stable, have high efficiency, low energy consumption, can manufacture the pressed wood pallet with higher loading capacity, and reduce the defective rate to 0%.
Molded Press Wood Pallet Making Machine for Wooden Pallet
We also supply the mould sets which can be easily replaced or changed, can produce different types of a pressed wood pallets. Fully Automatic loading and take-out equipment supplied as per request. Field installation service.production guidance and labor training are available as well.
Molded Press Wood Pallet Making Machine for Wooden Pallet
The whole compressed wood pallet production line :
Raw materials
The compressed wood pallet making machine mainly uses Bamboo shavings, wood sawdust, wood shavings, and scrap materials as the main raw materials.
End Products of Compressed Wood Pallet Machine :

Our Factory

Company Profile
Henan Elasn Machinery Equipment Co., Ltd is located in Zhengzhou, the central area of China, a traditional industrial city with a rich culture and history. Away from Xinzheng International Airport only half an hour, and also has trains to every main city in China.
Molded Press Wood Pallet Making Machine for Wooden Pallet
"Business integrity, Quality first" is our principle. Our company is equipped with a professional team of quality control and after-sales service members to keep track of each order scientifically, so as to provide high-speed services for customers.
Molded Press Wood Pallet Making Machine for Wooden Pallet
"To provide a design, production, quality control, inspection, testing, sales, and logistics service to companies that need a reliable supply of wood machinery from China."
Molded Press Wood Pallet Making Machine for Wooden Pallet
All members of ELASN welcome new and regular customers to contact us to build long-term and friendly relations of cooperation! We will strive to produce more quality products for you!
Packaging & Shipping
After Sales Service-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available for lifetime use.
- We handle your grumble within 48 hours.Molded Press Wood Pallet Making Machine for Wooden PalletTechnical Support- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment services are provided.
- Operating video & instructions will be sent to clients for better use of machines.
- Any problems that occur while using, professional advice will be given by us.
FAQ

Q1: What's your factory MOQ and best price?
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price term, we will try our best to meet with your demands.
Molded Press Wood Pallet Making Machine for Wooden Pallet
Q2: This is the first time to use this machine, is it easy to operate?
A2: There is English manual that shows you how to use the machine. If you still have any questions, please contact us by e-mail/skype/ phone / WhatsApp/trademanager online service.
Molded Press Wood Pallet Making Machine for Wooden Pallet
Q3: Is it difficult to maintain the machine?
A3: If your company has a technician, then with our guiding videos, it's not difficult we think, our other customers can handle it by themselves, and we think you also can.
Molded Press Wood Pallet Making Machine for Wooden Pallet
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Molded Press Wood Pallet Making Machine for Wooden Pallet
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
