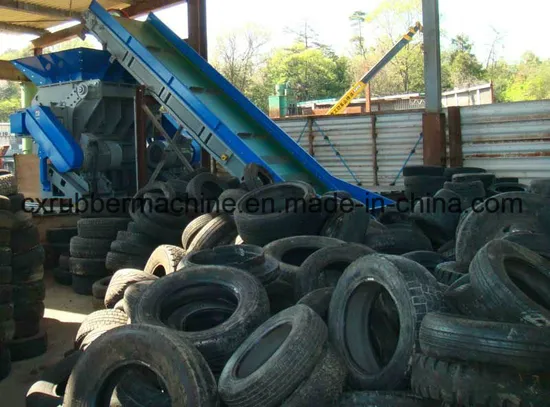

Waste Tires Recycling Plant, Waste Tyres Recycling Equipments
| US$3,999.00-14,999.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
XKP-450
Certification
CCC, CE, ISO
Voltage
220V 380V 415V
Structure
Horizontal
Bush
Nylon Bush and Bearing Bush
Reducer
Hardened Gear Teeth,After Heat Treatment
Lubrication
Oil or Grease Automatic
Transport Package
in Wooden Case Safety Packing
Specification
ISO9001, SGS, CE
Trademark
CX
Origin
China
HS Code
8477800000
Production Capacity
400sets/Month
Product Description
Waste Tire Recycling Plant, Waste Tyre Recycling EquipmentsApplication: Crush the waste tire into rubber powder with advantage of environmental protection and energy saving, bright market prospect.
1. Tire Cutter: It is the first process of reclaiming waste tire, used to separate among the tire crown, side-wall and bead.
Highlights: The blade is excellent hardened alloy for wearing-resistance and long life.
Parameter:
| Production Capacity (Pieces/Hour) | 60-80 |
| Motor Power (KW) | 3 |
| Motor Rotating Speed (R/Min.) | 1440 |
| Dimension (MM) | 1300x900x1200 |
| Weight (KG) | 300 |
2. Strip Cutter: It is mainly used in cutting the crown and side-wall of waste tire into certain width of rubber strip.
Highlights: The two disc knife adopts special metal heat treatment with high hardness and durability.
Parameter:
| Production Capacity (KG/Hour) | 1500-2000 |
| Motor Power (KW) | 5.5 |
| Motor Rotating Speed (R/Min.) | 1440 |
| Model of Reducer | 350 |
| Reduction Ratio | 31.5 |
| Size of Discharged Materials (MM) | 20-50 |
| Dimension (MM) | 1300x700x1500 |
| Weight (KG) | 670 |
3. Block Cutter: It is mainly used to cut the rubber strip in to block.
Highlights: The blade adopts excellent hardened alloy for wearing-resistance and long life.
Parameter:
| Production Capacity (KG/Hour) | 1200-1500 |
| Motor Power (KW) | 7.5 |
| Motor Rotating Speed (R/Min.) | 1440 |
| Size of Discharged Materials (MM) | 20-50 |
| Dimension (MM) | 750x750x1200 |
| Weight (KG) | 420 |
4. Bead Wire Separator: It is mainly used in separating rubber and steel wire of bead.
Highlights: Easy operation, Simple Maintaince.
Parameter:
| Production Capacity (Pieces/Hour) | 70 |
| Motor Power (KW) | 15 |
| Motor Rotating Speed (R/Min.) | 1440 |
| Model of Reducer | 400 |
| Reduction Ratio | 40.17 |
| Dimension (MM) | 1500x900x1400 |
| Weight (KG) | 1300 |
5. Transportation System: Belt Conveyor + Vibrating Sieve + Magnetic Separator.
6. Rubber Shredder Machine:
Main Features:
a. Grooved & Smooth Roller: Chilled casting iron alloy.
b. Emergency brake device: Manual and automatic.
c. Famous motor.
d. Durable transmission system.
e. Esay assembly and operation.
f. CE, ISO approved.
Parameter:
| Parameter \ Model | XKP-560 | XKP-450 | XKP-400 |
| Front roller diameter (MM) | 560 | 450 | 400 |
| Back roller diameter (MM) | 510 | 450 | 400 |
| Roller length (MM) | 800 | 650 | 600 |
| Front roller surface speed (m/min) | 25.56 | 23.2 | 17.32 |
| Friction ratio | 1:1.3 | 1:1.38 | 1:1.38 |
| Max. nip | 15 | 8 | 8 |
| Feeding capacity (KG/H) | 1500 | 600-800 | 200-300 |
| Motor power (KW) | 75 | 55 | 45 |
| Measurement (MM) | 5064x2284x1978 | 4770x1846x1835 | 3950x1800x1780 |
| Weight (KG) | 19000 | 19000 | 19000 |
