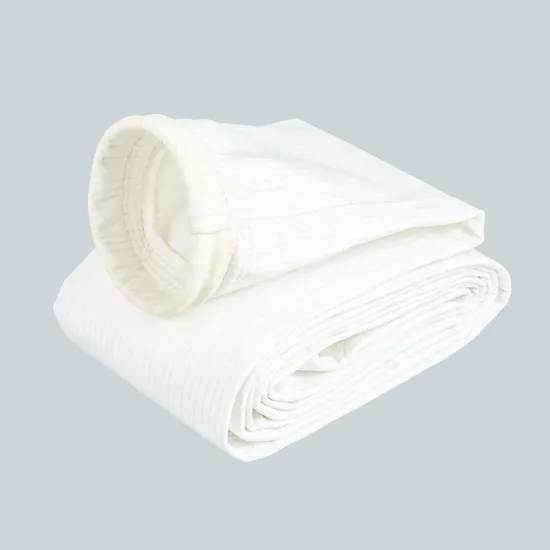

Hot Selling Dust Collector Filter Bag for High Temperatue Resistant Tyc-P84fb
| US$1.00 | 1 Square Meter (MOQ) |
Basic Info.
Model NO.
TYC-P84FB
Material
P84
Size
Customized
Type
Felt Fabric
Pattern
Plain
Width
58/60"
Structure
Fabric Form
Style
Resistance High Temperature
Gram Weight
550GSM
Transport Package
in Carton
Specification
500mm*600mm*700mm
Trademark
Tianyuan
Origin
China
HS Code
5911400000
Production Capacity
5000m Per Week
Product Description
Features & Benefits1. Highly efficient filtration level
2. Depth type filtration
3. Wide range of chemically compatible media
4. High temperature resistance
5. High flow efficiency
6. High air to cloth ratio
7. Various coatings are available
Technical Specifications
1. Material: P84
2. Weight (g/): 500
3Thickness (mm): 2.0
4. Air permeability (L/*s): 200-300
5. Breaking strength (N/5*20cm): Wrap: 1100
Weft: 1200
6. Elongation (%): Wrap<25
Weft <35
7. Working temperature: Peak: 260
Cont: 280
8. Finishing: PTFE dip forming
Sizes
Customized sizes are available
Configurations
1. Snap band type
2. Flange collar type
3. Rubber cord type
4. Customized
Applications
1. Pharmaceuticals
2. Steel & Power
3. Powder coating
4. Shot Blasting
5. Cement
6. Chemicals
7. Metals & Minerals
8. Paints & Pigments
model | material | Weight (g/square meter) | Thickness (mm) | Air permeability (L/square meter*s) | Breaking strength (N/5*20cm) | Elongation (%) | Working temperature | finishing | ||||
| wrap | weft | wrap | weft | Peak | cont | |||||||
| Fiberglass felt | Fiberglass | 800 | 2.4 | 200-300 | 1800 | 1800 | <10 | <10 | 240 | 260 | PTFE dip forming | |
| Nomex Felt | Nomex | 500 | 2.0 | 200-400 | 1300 | 1500 | <50 | <55 | 204 | 240 | Singed calendered heat set | |
| PPS felt | PPS | 500 | 1.8 | 200-300 | 1250 | 1350 | <40 | <60 | 190 | 220 | Singed calendered heat set | |
| P84 felt | P84 | 500 | 2.0 | 200-300 | 1100 | 1200 | <25 | <35 | 260 | 280 | PTFE dip forming | |
| FMS felt | FMS | 800 | 2.5 | 200-300 | 3260 | 3300 | <10 | <15 | 260 | 300 | PTFE dip forming | |
| PTFE felt | 100% PTFE | 750 | 1.1 | 150-250 | 620N/5cm | 510N/5cm | <5 | <5 | 240 | 260 | Singed heat set | |
