6250 Lathe Gap Bed Engine Lathe Machine CS/LC6250 Turning Manual Lathe

Product Description

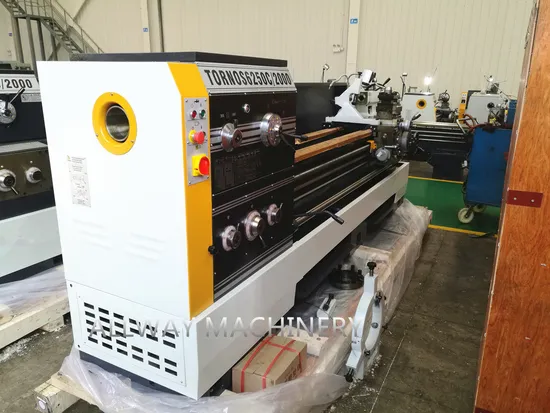

6250 Lathe Gap Bed Engine Lathe Machine CS/LC6250 Manual Lathe
6250 lathe INTRODUCTION:
-Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
-Threading Inch, Metric, Module and D.P.;
-Perform drilling, boring and groove broaching;
-Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
-Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
-There are hand brake and foot brake for users to choose;
-These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
6250 lathe EQUIPMENT:
METRIC VERSION, OR OTHER
RIGHT/LEFT HANDWHEEL(ON APRON),
3, 4-JAW CHUCK AND ADAPTER,
4-WAY TOOL POST,
STEAD REST 120-260MM for TRNOS6250B(C), TRNOS 6266B(C), 170-320MM for TRNOS 6280B(C);
FOLLOW REST,
FACE PLATE,
DIRVE PLATE,
FOOT BRAKE,
FULL LENGTH SPLASH GUARD(SHORT TYPE ON 3M LATHE),
LONGITUDINAL MECHANICAL STOP(WITHOUT ON 3M LATHE),
HALOGEN LIGHT.
ALL STANDARD ACCESSORIES,
LIGHT GRAY AND DARK GRAY COLOR.
PACKING WITH WOODEN CASE FOR SHIPMENT.
6250 lathe OPTIONAL ACCESSORIES:
1). TAPER TURNING ATTACHMENT:
2). THREAD CHASING DIAL:
3). AMERICAN TYPE QUICK CHANGE TOOL POST:
EUROPEAN TYPE QUICK CHANGE TOOL POST:
4). SINO 2 AXIS DRO FOR 1M LATHE:
SINO 2 AXIS DRO FOR 1.5M LATHE:
SINO 2 AXIS DRO FOR 2M LATHE:
SINO 2 AXIS DRO FOR 3M LATHE:
5). LIVE CENTER:
6250 lathe "B"-82MM SPINDLE BORE
6250 lathe "C"-105MM SPINDLE BORE

Item		Unit	Parameter
			CS6240	CS6250/B	CS6266/B	CQ6280B	CS6250C	CS6266C	CQ6280C
Capacity	Max swing over bed	mm	φ400	φ500	φ660	φ800	φ500	φ660	φ800
	Max swing in gap	mm	φ630	φ710	φ870	φ1000	φ710	φ870	φ1000
	Effective length in gap	mm	240
	Max swing over slide	mm	φ220	φ300	φ420	φ560	φ300	φ420	φ560
	Max workpiece length	mm	750/1000/1500/2000/3000		1000/1500/2000/3000	2000/3000	1000/1500/2000/3000		2000/3000
Spindle	Spindle thru-hole	mm	φ52	φ82		φ82	φ105
	Spindle nose		CS6140:ISO 702/ No.6 bayonet type; Others: ISO 702/ No.8 cam-lock type
	Spindle speed	r/min	24 step 9-1600			24 step 8-1400	12 step 36-1600		12 step 30-1400
	Spindle motor	kW	7.5
Tailstock	Quill dia./travel	mm	φ75/150			φ90/150	φ75/150		φ90/150
	Taper of center	MT	5
Tool post	Number of station/ Tool section		4/25X25
Feed	Max X-axis travel	mm	145
	Max Z-axis travel	m/min	320					310	320
	X-axis feed	mm/r	93 sorts 0.028-6.43				65 sorts 0.063-2.52
	Z-axis feed Z-axis feed	mm/r	93 sorts 0.012-2.73				65 sorts 0.027-1.07
	Metric thread	mm	48 sorts 0.5-224				22 sorts 1-14
	Inch thread	t.p.i	48 sorts 72-1/4				25 sorts 28-2
	Module thread	πmm	42 sorts 0.5-112				18 sorts 0.5-7
	DP thread	t.p.i. π	42 sorts 56-1/4				24 sorts 56-4
Others	Coolant pump motor	kW	0.06
	Machine length	mm	2382/2632/3132/3632/4632		2632/3132/3632/4632	3365/4365	2632/3132/3632/4632		3365/4365
	Machine width	mm	975		1050	1340	975		1340
	Machine height	mm	1230		1350	1490	1270	1450	1490
	Machine weight	kg	1795/2050/2250/2450/2850	2050/2100/2300/2500/2900	2400/2600/2800/3000	3300/3700	2100/2300/2500/2900	2200/2400/2600/3000
