Wireless Industrial F24-10d Remote Controller

Product Description

PRODUCT DISPLAY
---------------

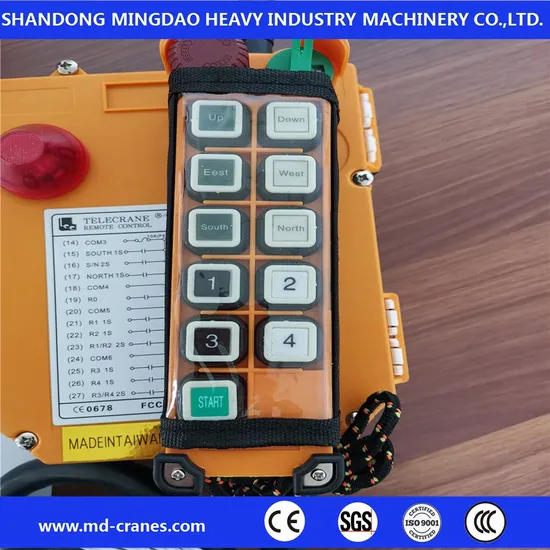

Wireless Industrial F24-10D Remote Controller
PRODUCT FEATURES
-----------

Brief Introduction:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. Well and high quality control, all working process according to ISO9001: 2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable.
Products Application:
MD double speed electric hoist or double speed electric chain hoist with hook, monorails, double hook /single speed hoist crane, and used for the industrial remote control which are under 16 connection.
Breif Introduction:
Transmitter size: 239*65* 65mm weight: 255g
Receiver size: 200*165*107mm weight: 1200g
Specification:
Control distance: Up to 100m
Unique code: Over 4.3billon unique ID codes.
Temperature: -35° C-+80° C
Enclosure protection class: IP65
Transmitter power: DC3v
Receiver power: AC 380v/ 36v/220V or DC12V/24V
Output capacity: Full sealed relay output with 5 amperes
Standard configuration:
One transmitter;
One receiver;
One 1m cable connect with receiver;
One operation and maintain manual.
Products Features:
* 10 Dual speed push button.
* Control points are upto 16.
* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
* With the Rotate key switch to guarantee the safety.
* Set the internal functions by computer interface.
* Up/down, east/west, south/ north push button can be set mutual inhibition or not.
* Power button can be set start, speed up, jump strokes, ordinary etc.
* Spare 1-2, 3-4 key can be set ordinary, interlock, jump strokes, switch etc.

Specifications:

Application	Overhead cranes, hoist ,chain hoist and other industrial machine
Frequency	310.0325~331.165Mhz
Frequency generation:	Crystal (plug in)
Channel	80
Channel Spacing	0.2675MHz
Control motions	16
Control distance	Up to 100m
Certificates	CE, FCC, ISO9001:2008
Number of push button	10 Double speed push button+1 start
Unique code	Over 4.3billon unique ID codes .
Working temperature	-35°C ~ +80°C
Enclosure protection class	IP65
Transmitter power	AA-size batteries
Receiver power	AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V
Output capacity	Full sealed relay output with 5 amperes
Material	glass fiber
