Wear Resistant Rubber Conveyor Belt Type Ep150 for Conveyor Belt System

Wear Resistant Rubber Conveyor Belt Type Ep150 for Conveyor Belt System

US$6.50-28.90 100 Meters (MOQ)

Basic Info.

Usage
Electrical Insulating Tape, Packing Tape
Performance
Strong Rubber Conveyor Belt
Application
Stone Crusher, Cement Plant,Coal Mining
Cover Thickness
4+2, 5+2, 6+2, 3+1.5,3+0
Width
600mm/650mm/800mm/1000mm/1200mm/1600mm
Length
100m/200m/300m
Grade
Grade N/Grade M/DIN X/DIN Y/Rmai/Rmaii
Belt Type
Plain Standard Conveyor Belt/Chevron Conveyor Belt
Other Belt Type
Sidewall Belt/Corrugated Cleat Belt/Rough Top Belt
Ep/Nn Type
Ep250/2/Ep400/3/Ep500/4/Ep600/3/Ep600/4/Ep800/4
Canvas Fabric Layer
1ply/2ply/3ply/4ply/5ply
Abrasion Loss
90mm3/120mm3/150mm3/200mm3
Tensile Strength MPa
8MPa/10MPa/12MPa/15MPa/17MPa/20MPa/24MPa
Transport Material
Sand/Gravel/Stone/Cement/Coal/Wood/Grain/Garbage
MOQ
100m
Edge
Cut Edge/Moulded Edge
Advantage
Strong, High Abrasive
Transport Package
PP Bag, Metal Rack, Pallets
Specification
0.8mx1.8mx1.8m
Trademark
zolohibest
Origin
Qingdao
HS Code
4010120000
Production Capacity
10000000m/Month

Product Description

Product Description
rubber conveyor belt EP rubber conveyor belt is widely used by the mining and processing industries for transporting bulk or lumpy materials such as quarrying, ore, coke, aggregates, crops, sand, clinker, chemicals, construction materials, etc.

The EP is short for Polyester fabric, which includes polyester toward longitudinal(warp) and polyamide for latitude(weft), EP fabric plies are sandwiched between rubber skim coats for adhesion and load support. Bottom and top cover compounds are added for maximum protection of the belt carcass. The belt consisting of two to six EP fabric plies, EP rubber conveyor belt has the same merit as Nylon conveyor belt.
Advantages:
A.Lower longitudinal elongation.
B.Full resistance to mildew, moisture and rotting.
C.Good flexibility and trough ability.
D.Short take-up lengths.
E.Suitable for middle and long-distance transportation of higher load and speed.
Details:
belt thickness: 3+1.5,4+2, 5+2, 6+2, 8+3, 3+0 etc
Belt width: 400-2600mm
belt length: 50-400m
tensile strength: 8-25mpa
Application: stone, cement plant, coal mine, copper mine
Edge: moulded edge or cut edge

The common ep conveyor belt type could be:
2-ply belts: 315/2 400/2 500/2 630/2 800/2
3-ply belts: 500/3 630/3 800/3 1000/3 1250/3
4-ply belts: 630/4 800/4 1000/4 1250/4 1600/4
5-ply belts: 800/5 1000/5 1250/5 1600/5 2000/5

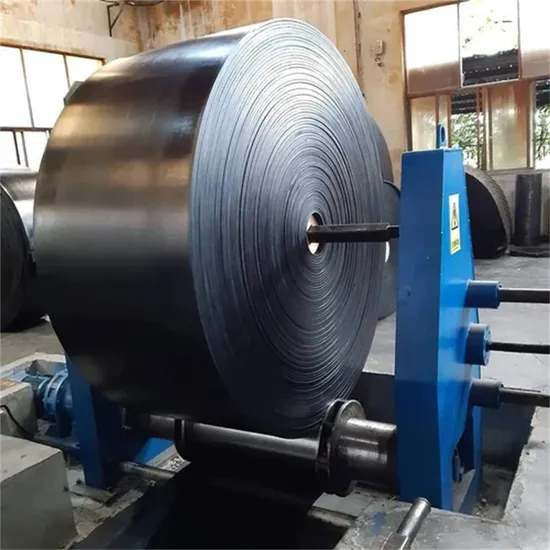

Detailed Photos you can see the strong fabric clearly
we have 1 ply, 2ply, 3ply, 4ply, 5ply etc

Quality control we have several professional quality inspectors to make sure all the belts meet customer's requirement before shipping goods.
before production
we will check to use correct raw material to make belt before manufacturing
during production
we will check production line to avoid any thing dropped on the belt
after production
we will check the thickness&width&length of each belt to ensure enough size, after that, then we will check the belt tensile strength, break resistance, abrasion loss, adhesion.
Packaging & Shipping packing: we usually use pp bag for plain belt, and metal rack for chevron belt and sidewall belt.
delivery: 2 weeks after getting your prepayment
Other type conveyor belt we can make these kinds of rubber conveyor belts as below.
chevron conveyor belt
we have shape close V, open V, close Y, open Y, close U, open U, Multi V etc
height can be C6, C10, C15, C17, C20, C25

sidewall conveyor belt
steel cord conveyor belt
rough top conveyor belt
pipe conveyor belt
Installation Instructions our belt is widely used in minning industry, construction industry, life , agriculture field, etc
mining industry like transport copper ore, stone, coal.
construction industry like transport gravel, sand, cement, wood, concrete.
agriculture field like transport fertilizer, crops
life area like transport life garbage,airport parcel.

Related other product we make we also have below products can make
rubber sheet SBR/NBR/CR/EPDM
pulley lagging sheet
coin rubber mat/diamond rubber mat/checker rubber mat
latex rubber sheet
