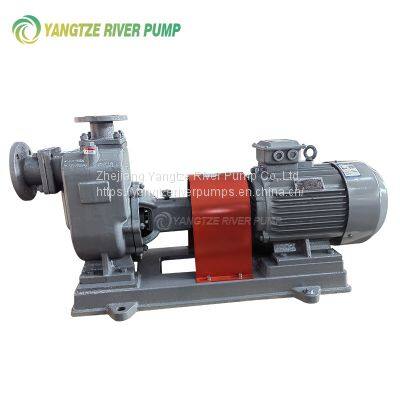

Self Priming Sewage Centrifugal Pump

Product Details

Product Description

Product Description
Summary
ZW Non Clogging Self priming sewage centrifugal pump is based on the diffuser principle, This pump is a combination of self priming and non clogging. It adopts wide flow channel of the impeller to transfer sewage with big solids, long fiber impurity, sediment impurity.
Construction
Advantage
1. Back-pull-out construction: Convenient formaintenance and troubleshooting.
2. Daily maintenance can be performed rapidly bycommon tools,saving time and labor.
3. Strong solids passing capacity:wide flow path impeller structure and non-clogging design.
4. With only the suction line down in the liquid (thepump shall be filled with water for first start).
5.The series of ZW series self-priming pumps do not need to install a bottom valve, but only need to ensure that there is a quantitative amount of liquid in the pump body .
Product details
Working Principle: Self Priming Pump
Usage: Water, Oil, Chemical, Food
Size: 32-200mm
Flow: 3.2~280m3/h
Head: 12~80m
Power: 1.1~90kW
Suction Head: 5-6.5m
Material: Cast Iron, SS304,SS316, Duplex SS, (copper impeller)
Impeller Type: Close Impeller/wide-cross Impeller for self priming sewage pump
Max. Temperature: 120°C ( can customize max temperature: 200°C)
Application
Marine,Municipal sewage engineering,river pond aquaculture,Light Industry,Agricultural,Papermaking, Textile, fiber, pulp,chemical, electrical,Fuel oil,Mixed suspension,chemical media.
