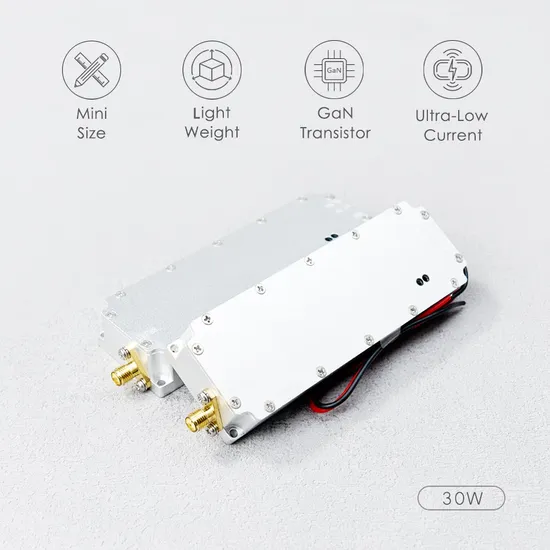

30W 2400-2500MHz Anti Fpv Signal Module GaN Blocking PA Vco Source C-Uas Uav Jamming Autel Mavic 3 Counter Anti-Drone System RF

Product Description

Product Parameters

Item name	Technical parameters
Working frequency	2400-2500MHz (Customizable to any frequency)
Saturated output power	45±1dBm
Gain	45±2dB
In-band fluctuation	≤2.0dB
Out-of-band spurious	9kHz~1GHz:≤-36dBm/30kHz 1GHz~12.75GHz:≤-30dBm/30KHz
Input VSWR	≤1.5
Gain temperature stability	≤±1.5dB
Working voltage	DC+28V
Working current	45dBm@≤2.8A
Powersupplymonitoring interface	Power supply: power line Red: power positive, black: power negative, white: power amplifier enabled
Output RF port	SMA
Dimensions	111.7*37.3*19.5

Detailed Photos




Spectrum data



Company Profile
1. Packing & Delivery :
Delivery time Normally 3-10 working daysafter received the deposit..ltalso depends on order Qty.

2. Packing :
Standard export packingor customized packingas your request.

3. Payment term :
T/T,Western Union, Paypal, Credit Card.if need other terms, let's discuss.
4. Delivery term :
FOB/EXW.If need otherterms, let's discuss.

5. Shipment :
Express,Air or Ocean ship.Professional shipping forwarder, more fast delivery and on time.
FAQ :

Q1: Are you a factory or trading company?
A1: We are a factory ,our factory locates in LongGang District,Shenzhen,Guagndong.Welcome to visit us.

Q2: How about the Shipping Method?
A2: DHL/UPS/TNT/Fedex and other air shipments and sea shipments are all workable. In one words, wecould do any shipments you
wanted.

Q3: How about the delivery date?
A3: In General, the delivery date will be 5-7 working days for normal buy quantity. But if bigger orderplease check us further.

Q4: How about the label and the logo?
A4: Customize label and logo is workable

Q5: How about the MOQ?
A5: 1 to 20 pcs according to different product.

Q6: How to do if the product i received is defective?
A6: Our strict quality control ensures 100% pass rate. But it can be damaged in the way. Please kindlyshare the defective product photo or video to let us know where the problem is. We will make the compen-sation accordingly or send you a part or product.
