Pump Concrete Parts Top Roof Concrete Pump
Basic Info.
Model NO.
HW30-30
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Construction
Structure
Cylinder Type
Productivity
12m3/H
Feeding Height
1200mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Max.Aggregate Size
20mm
Max Vertical Delivery Distance
50m
Max Horizontal Delivery Distance
80m
Transport Package
Wooden Case
Specification
3100*1400*1700mm
Trademark
HW
Origin
China
HS Code
8413400000
Production Capacity
1000sets/Month
Product Description
To customers:1. We are a factory focus in Construction Machines for more than 10 years with CE, ISO, BV, TUV. 2. All of our Concrete Pump has both electric and diesel power for your choice;
3. Specialized After-Sales Service Team for 24h aboard site serving;
4. Overseas Spare Parts, guarantee the sufficient spare parts locally.
Product Description
Products Description:

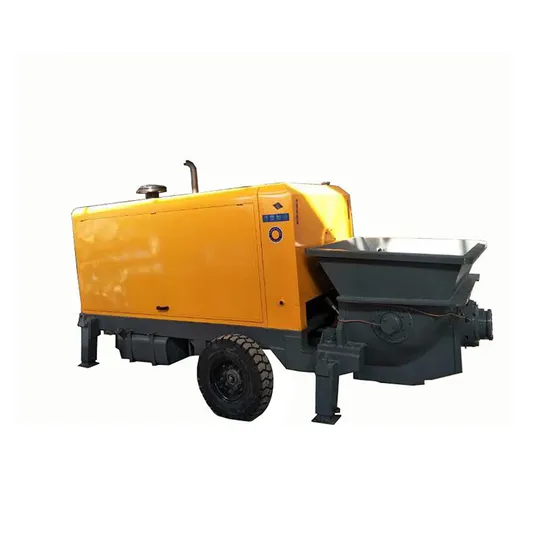

Hengwang HW20-22 Concrete Pump
Max Vertical Delivery Distance : 50m
Max Horizontal Delivery Distance : 80mmDelivery Capacity: 10-12m3/h
Hengwang Concrete Pump: High construction efficiency; Continuous pumping of field agitator, siring with traditional mixer Compared with mixing and manual feeding, the efficiency is increased by more than 5 times.
Product Parameters
| Concrete Pump (Model: HW20-22) | |
| Power | 22kw |
| Voltage | 380V, (We also have Diesel type) |
| Max.Aggregate Size | 20mm |
| Max Vertical Delivery Distance | 50m |
| Max Horizontal Delivery Distance | 80m |
| Delivery Capacity | 10-12m3/h |
| Cylinder Stroke | 650mm |
| Diameter of Delivery Pipe | 100mm |
| Total Weight | 1500kg |
| Steel pipes | 30m |
| Hoses | 10m |
| Overall Dimension (L*W*H) | 3100*1400*1700mm |
Detailed Photos
Packaging & Shipping
Wooden case
