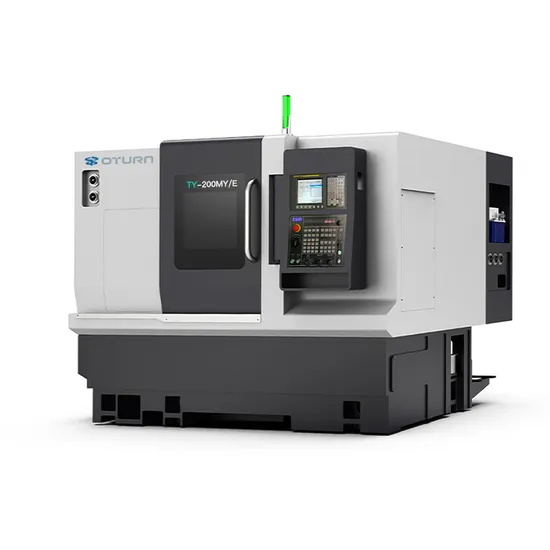

Industrial Slant Bed CNC Lathe with Fanuc/Siemens

Product Description

Product Description
The innovative two-axis lathe revolutionizes manufacturing by enabling simultaneous processing of both ends of a workpiece in a single clamping. This significantly streamlines manual operations, enhances output, and reduces redundant processes. Its secondary spindle facilitates comprehensive turning and seamless workpiece transfer, thus minimizing cycle times. The lathe's design integrates a 30-degree inclined structure, ensuring remarkable precision, superior rigidity, and outstanding cutting stability. Constructed from high-strength HT300 cast iron and analyzed using finite element methods, the one-piece lathe bed embodies exceptional mechanical rigidity and stability. This ensures long-term accuracy and enhances processing stability and tool lifespan. Stress relief treatment further augments accuracy stability. The high-strength roller linear rail design and screw pre-tension transmission system enhance rigidity. The lathe's aesthetically pleasing, streamlined appearance aligns with contemporary design trends.
Main features of this machine tool:
1. Utilizes a direct-drive synchronous electric spindle with a magnetic ring incremental encoder (sine and cosine) offering 20 arc seconds positioning accuracy and 40 arc seconds C-axis indexing accuracy. This configuration effectively eliminates spindle vibration, maintaining nose deflection accuracy within 0.002MM, thus improving the surface finish of workpieces. The rear-mounted rotor allows for quicker installation and maintenance. Equipped with a spindle motor cooling system, it mitigates thermal displacement, ensuring constant operational temperatures. Rigorously tested for dynamic balance, the spindle system guarantees exceptional accuracy retention, high rigidity, and efficiency, making the machine adept at both finishing and heavy-duty rough machining. Ideal for mass production of intricate, high-smoothness components.
2. High-rigidity integrated design servo power turret enhances rapid and precise tool changes. Coupled with high-speed power axis milling, it delivers outstanding combined turning and milling capabilities. The tool holder is mounted using a high-rigidity BMT interface, driven by a servo spindle motor for power transmission.
3. Equipped with roller linear guides and precision-ground ball screws, this machine ensures optimal accuracy and durability. Each axis features a direct transfer structure and double-anchor pre-relay method, minimizing thermal displacement and significantly improving machining accuracy. The high-rigidity, heavy-duty linear slide rails maintain accuracy under impact, providing smooth, low-noise displacement and extended service life.
4. Offers a comprehensive hydraulic and lubrication system with high-quality hydraulic pumps and valves, significantly reducing failure rates. The design of these systems prioritizes simplicity and reliability.
5. Features a Taiwan rotary chuck cylinder and optional automatic chip removal device, greatly reducing operator labor intensity and ensuring safe, efficient production. Functional components can be programmed and controlled, with customizable function designs and installations to meet specific user requirements, including special fixtures.
Product Parameters

Name	Unit	ETY200MY/E
Max. swing diameter over bed	mm	Ф660
Max. processing diameter	mm	Ф490
Max.Swing Over Cross Slide	mm	Ф280
Max. processing length	mm	420
Distance Between Centers	mm	550
Spindle nose	ASA	A2-6
Spindle bore diameter	mm	Ф66
Bar diameter	mm	Ф52
Max. spindle speed	rpm	4300
Spindle motor power	kw	18/22
Hydraulic Cylinder/Chuck	inch	8"
X/Z/Y motor power	kw	2.5/2.5//1.2
X/Z/Y travel	mm	290/510/100(±50)
X/Z/Y axis moving fast	mm/min	24/24/8
Slide rail type	/	35 roller
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
Tool position	pcs	BMT55-12T
Power cutter tower motor	Kw/Nm	4.5/11-27
Maximum speed of	rpm	6000
The turret specifications	mm	25x25
Circular cutter holder specification	mm	Ф40
The adjacent tool change time	sec	0.15
Programmable hydraulic tail seat	/	Programmable
The biggest stroke of the tail	mm	360
Sleeve diameter	mm	Ф100
Sleeve travel	mm	100
Sleeve taper	/	MT#5
Machine size	mm	2600*2100*1800
Machine Weight	kg	4200
Cutting fluid tank volume	L	150
Volume of hydraulic unit box	L	40
Hydraulic oil pump motor power	kw	1.5
Volume of lubricating oil tank	L	2
Auto lube pump motor power	W	50
Cooling water pump power	W	750
