4lz-4.0zd Multifunctional Combine Harvester for Rice/Wheat/Grain/Paddy

Product Description

4LZ-4.0ZD Multifunctional Combine Harvester for Rice/Wheat/Grain/Paddy
1. Why choose us?
FOTMA is the leading and professional supplier in China for rice & wheat mini combine harvester!
FOTMA has over than 17 years experience with combine harvester and agricultural machine!
FOTMA can supply the best price and professional service!
FOTMA has good reputation with all world customers!
FOTMA is 13 year Gold Member at Made In China!
2. Product description
Our combine harvesters are high working efficiency and low cost, which is strong power, simple operation, more peace of mind, excellent quality, better durability, large and fast feeding and harvesting.
3. Characteristics
1. The imported HST gearbox is adopted, tailored and specialized for this model to achieve reasonable matching.
2. Equipped with a high-powered engine, giving a strong driving force.
3. Equipped with a wide-swath header, able to achieve large feeding operation.
4. Features
1.Equipped with high-quality engine of 110 horse power, giving a strong driving force;
2.Automatically 270°Hydraulic unloading type to improve working efficiency; Rotary grain tank, easy for maintenance;
3.Equipped with luxury cab with air conditioner;
4.With large cutting width of 2500mm, and 600mm wider paddy field track, better pass ability;
5.Simple operating console, hydraulic chassis driving system.
6.Equipped with double pump and motor, more easy for steering and transmission.
5. Technical parameters

Model			4LZ-4.0ZD
Feeding capacity (kg/s)			4.0
Overall Dimension L*W*H (mm)			5270*2300*2960
Weight(kg)			3150
Working efficiency (hm2/h)			0.3-0.7
Engine
Type			4-cylinder in-line water cooling
Rated Power (hp)			88/95/100
Speed(r/min)			2600
Fuel			Diesel
Fuel tank capacity(L)			160
Fuel Consumption(kg/hm2)			≤32
Drive System
Track		Specification	90 mm× 53section× 500mm
		Track gauge	1250
Minimum Ground Clearance(mm)			325
Transmission			Mechanical(75 gear)+ stepless hydraulic speed regulating (HST)
Number of shifting positions			stepless speed
Walking Speed(km/h)			0-5.8
Cutting
Reel	Type		Eccentric drawing-tooth
	Diameter(mm)		900
Cutting Width(mm)			2000
Blade Width(mm)			2000
Header auger			Spiral blade+Eccentric telescopic rod rack
Grain unloading Part
Grain unloading method			270° hydraulic unloading
Grain Tank(m³)			1.5
Other configuration
Automatic reversing mechanism			Equipped
Dust fan			Equipped
Anti-grass case			Equipped
Belt for main clutch & walking			MISUBUSHI
Bearing			NSK

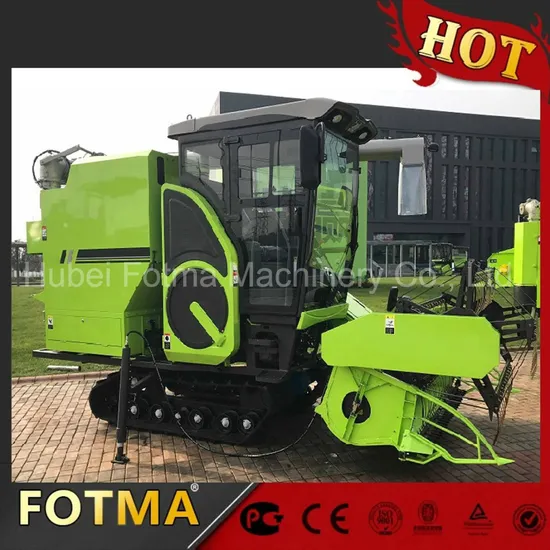

6. Photos
