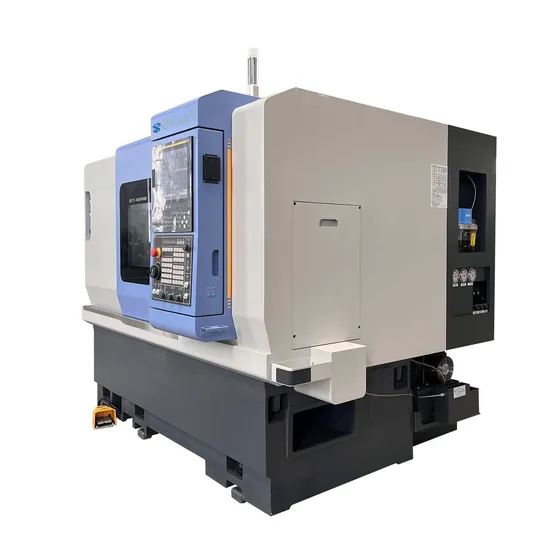

Oturncnc Advanced Slant CNC Metal Lathe with Y Axis

Product Description

Product Description
The two-axis Advanced CNC Metal Lathe Machine from Ningbo Oturn Machinery Co., Ltd., revolutionizes metalworking with its simultaneous two-end processing, significantly enhancing efficiency by minimizing manual operations and reducing cycle times. Equipped with a secondary spindle for seamless workpiece transfer during machining, this powerhouse reduces processes and boosts output. The 30-degree inclined bed design ensures unparalleled precision, rigidity, and cutting stability. Crafted from high-strength HT300 cast iron using finite element analysis, the lathe bed boasts exceptional mechanical stability and accuracy retention, ensuring long-term processing reliability and improved tool life. The roller linear rail design, combined with a pre-tensioned screw transmission system, delivers robust rigidity performance. Its sleek, contemporary design reflects modern industrial aesthetics.
Main features of this machine tool:
1. The machine adopts a direct drive synchronous electric spindle device, featuring a magnetic ring incremental encoder with a positioning accuracy of 20 arc seconds and C-axis indexing accuracy of 40 arc seconds. This setup eliminates spindle vibration, maintaining a nose deflection accuracy within 0.002MM. The rear-mounted rotor facilitates quick installation and maintenance, while a cooling system ensures consistent spindle temperature, minimizing thermal displacement. Undergoing rigorous dynamic balance testing, the spindle system provides excellent accuracy retention, high rigidity, and efficiency, adept for both fine finishing and heavy-duty rough machining. Ideal for mass production of intricate shapes requiring superior surface smoothness.
2. Integrated high-rigidity design servo power turret enhances rapid and precise tool changing. Coupled with high-speed power axis milling, it excels in combined turning and milling operations. The high-rigidity BMT installation interface and servo spindle motor-driven power transmission shaft ensure flawless performance.
3. Equipped with roller linear guides and precision-ground ball screws, the machine ensures optimal accuracy and longevity. The direct transfer axis structure and double-anchor pre-relay method minimize thermal displacement, significantly enhancing processing accuracy. High-rigidity, heavy-duty linear slide rails maintain accuracy under impact, providing smooth, low-noise operation that extends service life.
4. A comprehensive hydraulic and lubrication system featuring high-quality hydraulic pumps and valves reduces failure rates. Designed for simplicity and reliability, these systems ensure seamless operation.
5. Featuring a Taiwanese rotary chuck cylinder and optional automatic chip removal device, this machine reduces operator labor intensity while ensuring safe, efficient production. Programmable and controllable functional components can be customized to meet specific user requirements.special fixture.
Product Parameters

Item	Unit	SY800M
Max. swing diameter over bed	mm	Φ680
Max. processing diameter	mm	Φ400
Max. processing diameter over tool holder	mm	Φ350
Max. processing length	mm	600
Spindle type	/	A2-6
Max. spindle speed	rpm	4300
Hydraulic Cylinder/ Chuck	/	8"
Spindle bore diameter	mm	Ф65
Max. bar diameter	mm	Ф52
Direct drive spindle motor power	kw	18/ 22
Direct drive spindle motor torque	Nm	105-227
X/Z axis travel	mm	320/740
X/Z axis rail specifications	spes	Roller45
X/Z axis motor power	kw	2.9/2.9
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
X/Z axis rapid speed	m/min	24/24
Power turret type	pcs	BMT55-12T
Power turret motor	Kw	5.0
Max. power tool holder speed	rpm	5000
External diameter tool holder specification	mm	25X25
Internal diameter tool holder specification	mm	Φ40
Adjacent tool change time	sec	0.15
Programmable hydraulic tailstock	/	Hydraulic tailstock
Max. Tailstock travel	mm	600
Tailstock sleeve tapered hole	type	Mohs5#
Sleeve diameter	mm	Ф80
Sleeve travel	mm	Fixed
Machine size	mm	3500*2110*2100
Machine weight	kg	6500
Cutting fluid tank volume	L	250
Cutting coolant water pump	KW	5
Hydraulic unit box volume	L	40
Hydraulic pump motor power	kw	1.5
Lubricat tank volume	L	2
Automatic lubrication pump motor power	W	50
Coolant water pump power	KW	1.5

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1: How can I choose the most suitable machines?
Please provide us with your detailed specifications so that we can recommend the best model tailored to your needs. Alternatively, you can specify the exact model you have in mind, or send us your product drawings, and we will ensure to select the most suitable machines for you.
Q2: What are the main products of your company?
We specialize in an extensive range of machines, including CNC Lathe Machines, CNC Milling Machines, CNC Turning Machines, Vertical Machining Centers, Horizontal Machining Centers, Lathe Machines, and comprehensive turning and milling composite processing solutions.
Q3: Where is your factory located? How can I visit there?
Our factories are strategically located in Guangzhou, Quzhou, Ningbo, and Guangdong. We warmly welcome you to visit any of our locations.
Q4. How do you transport your products?
We offer comprehensive transportation solutions, including DDP, CIF, FOB, and FCA.
Q5: What are the Payment Terms?
We accept T/T, with a 30% initial payment upon order and the remaining 70% balance due before shipment.
Q6: What is the Minimum Order Quantity (MOQ)?
A: The MOQ is 1 set. Certain low-cost machines may require a higher quantity.
We want to know:
1. We highly recommend providing the size and material details of your workpiece for our assessment. If possible, send us a drawing of your workpiece, which will help us in recommending the most suitable model to you.
2. If you need a CIF price, please kindly specify the port of destination.
