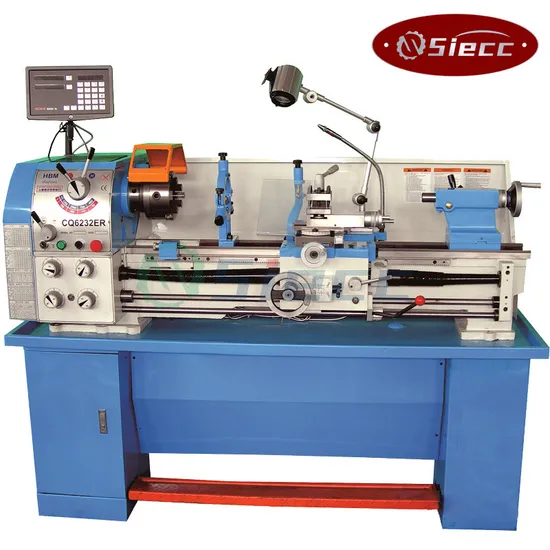

Cq6236b/Cq6232b Bench Lathe Machine
| US$2,000.00-3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CQ6236B LATHE MACHINE
Power Source
Electric
Automatic Grade
Semiautomatic
Certification
GS, CE, RoHS
Transport Package
Wooden Box
Specification
CE/ISO/SGS/GOST CERTIFICATION
Trademark
SIECCTECH/HECTMAC/BRILLANTE/SIECC
Origin
Haian City, Nantong, Jiangsu
HS Code
8458190000
Production Capacity
200 Sets/Month
Product Description
| Capacity | Swing over bed | 320mm | 12-4/5" |
| Swing over gap | 476mm | 18-3/4" | |
| Swing over cross slide | 198mm | 7-25/32" | |
| Distance between centers | 750mm/910mm/1000mm | 30"/36"/40" | |
| Spindle | speed range | 65-1400rpm(or 65-1810rpm) | |
| spindle bore | 38mm | 1-1/2" | |
| taper of bore | No.5Morse | ||
| Travel | Longitudinal feeds range | 36kinds0.079-1.291mm/rev | 0.003"-0.0508" |
| Cross feeds range | 36kinds0.017-0.276mm/rev | 0.0007"-0.0108" | |
| Feed | Metric threads range | 0.4-7mm | |
| Inch threads range | 4-60T.P.I | ||
| Tailstock | Travel of tailstock sleeve | 100mm | 4" |
| Morse taper of tailstock sleeve | No.3Morse | ||
| Others | Power of main motor | 1.1kw | |
| Weight | 550/590/670kgs | ||
| size | 1480/1680/1940*750*1400mm | ||
Precision ground and hardened bedways
The spindle is supported with precision roller bearings
Head stock gears are made of high quality steel ground and hardened
Three different length beds are available
Easy operating speed change levels
Removable gap is provided for large diameter work
Easy operation gear box has various feeds and thread cutting function
With or without foot standard for optional
