Compact 10W Closed UV Laser Engraver Machine for Non-Metal Applications

Product Description

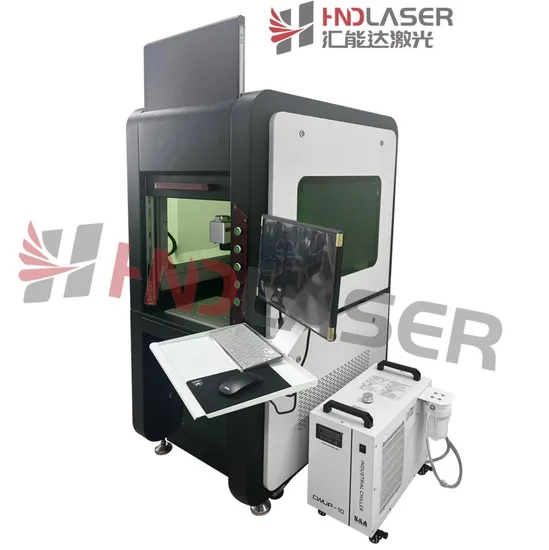

Enclosed UV Laser Marking Machine
(Can be customized to your needs)
Introducing our state-of-the-art portable laser markers, epitomizing extraordinary adaptability that far exceeds traditional markers. Perfectly designed for a vast array of application scenarios, they represent the pinnacle of versatility in laser marking technology.

1.Main features

High-power UV laser: adopts high-power UV laser to provide powerful marking and engraving capability, capable of handling a variety of materials

Safety shield: Equipped with a safety shield to prevent the laser radiation from harming the operator, and also to prevent the fumes and dust generated during the process from spilling out, to protect the environment and personnel safety.

Fume extractor: Built-in or external smoke purifier can efficiently remove the smoke and dust generated during processing, keeping the working environment clean and in line with environmental standards.

Motorized lifting column: Equipped with motorized lifting column, it is convenient to adjust the height of the marking head to adapt to different sizes and shapes of workpieces, improving work efficiency and flexibility.

Ultra-high-speed and high-precision galvanometer: Adopting ultra-high-speed and high-precision galvanometer ensures the speed and precision of laser marking, which can quickly complete the task of marking complex patterns and texts.

Professional Engraving Software: Equipped with professional engraving software, it supports a variety of file formats, provides powerful editing and design functions, and is easy to operate, which can meet a variety of marking and engraving needs.


2. Better Performance than Standard Model
DIY Computer Configuration:
Empower your creativity and productivity by configuring your own computers. Select high-performance PCs or laptops to perfectly match and optimize the laser equipment performance to suit your specific requirements.
High Performance Computing Requirements:
With a cutting-edge 3D galvanometer, enjoy enhanced computing capabilities powered by advanced CPUs and GPUs. This ensures efficient management of intricate 3D graphics and models, delivering superior marking quality.

3. Wide Range of Applications
Offices and Studios:
Compact yet powerful, our laser marking station is specifically tailored for offices and studios. Seamlessly handle diverse small-batch and custom marking tasks with unmatched ease and efficiency.
Startups and Innovations
The ideal partner for startups and innovation hubs, maximizing space and cost-effectiveness. Swiftly adapts to various marking demands, supporting agile production and rapid prototyping with ease.
Research and Teaching:
A crucial tool in research and education, facilitating lab projects, student experiments, demonstrations, and training courses in academic settings with unparalleled reliability.
Outdoor Work:
With mobile power solutions, our station is perfect for in-field tasks from pickup trucks, vans, and more. It efficiently satisfies outdoor and on-site marking requirements, ensuring flexibility and reliability.

Advantages & Accessories

Related Type
Advantage
Non-consumable
Say goodbye to consumable replacement costs
Operates solely on electricity
A robust one-time investment
Maintenance-free operation
Eco-friendly and sustainable
Innovative ink-free technology
A solvent-free process
Enjoy an odorless operation
Non-toxic and safe to use
Non-corrosive materials
Energy-efficient systems
Minimally wasteful in operation
Ensures 100% resource utilization
Produces zero emissions
Delivers permanent and resilient markings
Precision-controlled indentation depth
Resistant to oxidation effects
No color degradation over time
Enhances traceability and tracking
Assured safety and reliability

Parameter

NO.	Project	Parameter
1	Model number	HU10XX
2	Laser power	5W/10W/15W/20W (Optional)
3	Laser level	Class IV (IEC 60825-1)
4	Laser type	UV Laser
5	Wavelength	355nm
6	Marking field	110*110mm-300*300mm/600*600/1000*1000mm (optional)
7	Marking depth	≤0.01mm
8	Marking speed	≤10000mm/s(optional)
9	Marking line width	0.01-0.2mm
10	Min character size	0.015mm
11	Repeat accuracy	0.01mm
12	Cooling method	Water-cooled
13	Laser source expected life	>20,000 hours
14	Standard user interface	PC/Touch panel
15	Consumables	No
16	Temperature	0-45ºC
17	Power consumption	1500 W
18	Electrical requirement	L/N/PE 100 - 240 VAC, 50/60 Hz

Materials		Reaction	Materials		Reaction
Metal	Stainless steel	√√	Plastic	PE	√√
	Aluminum	√√		PP	√√
	Anodized aluminum	√√		PVC	√√
	Brass	√√		PPR	√√
	Coated metal	√√		ABS	√√
	Copper	√√		PET	√√
	Gold, silver, nickel, platinum	√√		Nylon	√√
	Carbon steel	√√		MPP	√√
	Titanium	√√		PC	√√
Ceramics	Ceramic	√√	Plastic films and foils	Aluminized foil	√√
Rubber	Natural rubber	√√		Polyethylene terephthalate (PET)	√√
	Synthetic rubber	√√		Oriented polypropylene (OPP)	√√

Exceptional Reaction: √√ Admirable Reaction: √ Unsatisfactory Reaction: -
APPLICATION
OPTIONAL ACCESSORIES
FOCUS AREAS
EXHIBITIONS AND FAIRS
PLANTS AND TEAMS
CERTIFICATION DISPLAY
Proudly certified by a renowned third-party organization, our machines are backed by a dependable warranty service. Should you need any assistance or support, our dedicated team is always at your beck and call.


COMPANY INFORMATION
ZHANGJAGANG HNDLASER TECHNOLOGY CO., LTD
HNDLASER HNDLaser Technology Co., Ltd. is a distinguished national high-tech enterprise, funded by HNDLASER Established in Zhangjiagang, we excel in seamlessly integrating research, development, production, and application of cutting-edge laser equipment. Our investment portfolio is robust, featuring Zhangjiagang HND Intelligent Equipment Co. and numerous other eminent enterprises.
Thanks to steady increases in annual R&D investments, our innovations have achieved notable market acclaim, ensuring a robust and stable production input across the entire laser industrial chain. HNDLASER is dedicated to a people-first, innovation-driven philosophy. We prioritize both technological advancement and talent cultivation, which fortifies our growing market presence and the respected reputation of our products.

FAQ
Q1: What is the warranty period like?
A1: During the warranty period, if any major parts (excluding consumables) develop issues, they will be replaced or repaired at no additional cost.
Q2: What payment terms do you accept?
A2: We accept a variety of payment methods including TT, Western Union, Paypal, LC, and Cash, among others.
Q3: Do you provide CE documents and other clearance documents?
A3: Certainly, we supply the original documents. Following shipment, you will receive the CE document, packing list, commercial invoice, and sales contract for an effortless customs clearance process.
Q4: If I am unfamiliar with the product usage upon receipt or encounter issues, how should I proceed?
A4: We offer a comprehensive user manual, enriched with illustrations and a USB disk for step-by-step learning. Furthermore, any machine updates will be provided monthly for your continued convenience.
Q5:How can I obtain a sample to verify the results?
A5: You are welcome to send us a sample, which we will test for you at no charge..
Q6: When will I receive a quote?
A6: Our expert team will respond to your inquiry within an impressive 12-hour window.
