High Quality Farm Implement Disc Plough Disc Plow for Sale

Product Description

High quality Farm implement Disc plough Disc plow for sale
The Disc plough have advantages:
1.Not winding grass, not block and no hip building-up
2.Easy to cut off stems and roots.
3.Less working resistance.
Disc Plough kinds:
According to the structure can be divided into different forms of 1LY series,1LYQ series,1LYT series, 1LYA series,1LYA series,1LTS series,1LYX series,1LY(SX) series, etc.
Disc Plough main Features (Sample 1LY series) :
Disc plough is completely mounted with Tractor, during operation the discs by its rotating to turn the soil, particularly, it is suitable for operation on the field with grasses, straw and stems of crops or plants, big soil resistance and with many stones and brickbat, etc in the field.
It is good at cutting the grasses and straw and free from topped by the grasses,soil or stones, etc.
Product Description
The Disc plough is one kind farm machine, which completely mounted with tractor, during operation,the discs by its rotating to turn the soil. particularly,it is suitable for operating on the field with grasses, straw and stems of crops or plants, big soil resistance and with many stones and brickbat,etc.in the field. It is good at cutting the grasses and straw, free from being stopped by the grasses, soil or stones etc.
Detailed Photos

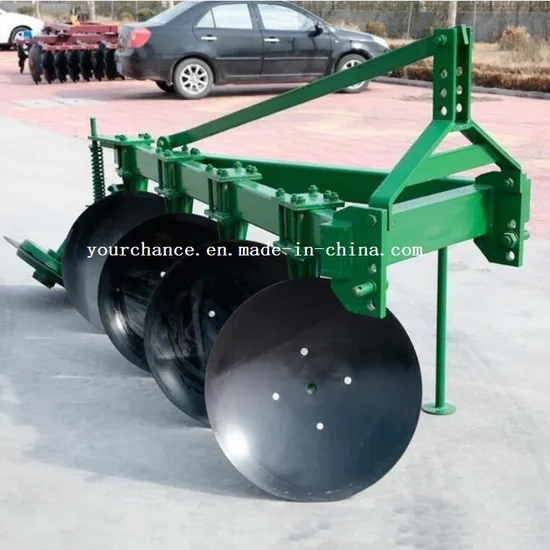

1LYQ series Disc plough:
1LY series Disc plough:
1LYX series Disc plough:
1LYSX series Disc plough:
1LTS series Disc plough:
1LYQ series Paddy field Disc plough:
Heavy duty hydraulic Disc plough:
Product Parameters
1LY Series Disc plough Main Specification and Technical Parameters:

20 Series
Model	1LYQ-220		1LYQ-315			1LYQ-320			1LYQ-420
Working width (mm)	400		450			600			800
Working depth (mm)	200		180			200			200
Disc diameter (mm)	510		460			510			5
Quantity of disc(Pcs)
Weight (kg)
Matched tractor power (HP)
Linkage	Standard three-point mounted
25 Series
Model	1LY-225	1LY-325			1LY-425		1LY-525			1LY-625
Working width (mm)	500	750			1000		1250			1500
Working depth (mm)	250	250			250		250			250
Disc diameter (mm)	660	660			660		660			660
Quantity of disc(Pcs)	2	3			4		5			6
Weight (kg)	400	420			480		530			570
Matched tractor power (HP)	40-55	50-80			75~110		100~140			120~160
Linkage	Standard three-point mounted
30 Series
Model	1LY-230			1LY-330				1LY-430
Working width (mm)	300			900				1200
Working depth (mm)	300			300				300
Disc diameter (mm)	710			710				710
Quantity of disc(Pcs)	2			3				4
Weight (kg)	430			490				570
Matched tractor power (HP)	45-60			55-80				90-110
Linkage	Standard three-point mounted

Certifications
High quality Disc plough have ISO,CE, PVOC COC, CO etc certificates:
Packaging & Shipping
Disc Plough packing have Iron crate, Iron case, Plywood case to meet different customers' request:
Various transporting ways to meet different customers' demand :
After Sales Service
Weifang Yourchance Machinery supply the perfact After Sales service to Global customers:
Best price will be quoted for you as soon as receive your Requirement !
