Cns-202 Basic Solar Photovoltaic Power System New Energy Generator PV Educational Generation Training Lab Equipment with Inverters Laboratory

Product Description

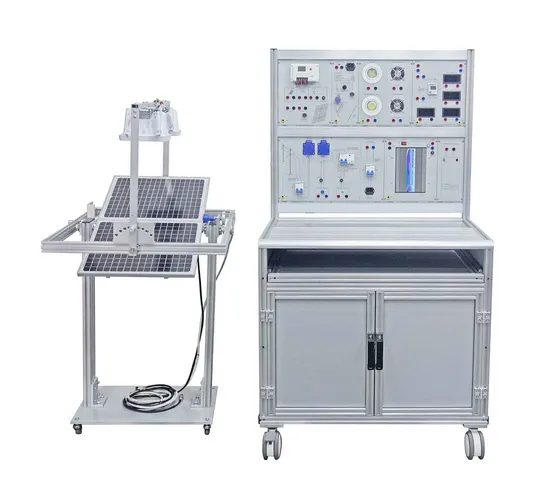

CNS-202 Solar Power Generation Trainer Product Description
CNS-202 is a trainer which for trainees to study photovoltaic generation. It has the following advantages:
(1) Adjustable light intensity.
• The light intensity can be controlled by a rotary knob on panel.
(2) Adjustable angle of light source.
• It adopts an excellent mechanical adjustment frame structure the angle of light source can be positioned more than 120 degree from south to north, or 120 degree from east to west freely.
(3) Adjustable angle of position of photovoltaic panel.
(4) Multi-stage PWM type solar charge controller.
• High efficiency power generation control and monitoring is available.
(5) LCD screen.
• It can display voltage and current and achieve RS485 communication.
(6) Dedicated instrumentation.
• AC/DC voltmeter and ampere meters for investigation of system efficiency and characteristics.

Configuration

Mobile aluminium experiment stand	XDY-002 Power supply control module	XZH-001 DC/AC load module
XNB-103 Off-grid inverter 300W	XCS-121 Solar controller module	XYB-001 Meter board 1.0
XNB-203 On-grid inverter 300W	XGK-001 Light control module	Accessories
Photovoltaic system	XBT-121 Storage battery (12V)	Manual

Training Content
(1) Solar panel open circuit voltage test
(2) Solar panel short circuit current test
(3) Solar panel iv characteristic test experiment
(4) Solar panel maximum power output characteristics experiment
(5) Solar panel transfer efficiency experiment
(6) Solar panel PV characteristics experiment
(7) Storage battery DC discharging experiment
(8) Solar panel to battery charging experiment
(9) Solar panel output voltage test under different light source angle and intensity
(10) Solar panel output voltage test under different panel angle
(11) Controller input and output experiment
(12) DC resistive and inductive load experiment
(13) AC resistive and inductive load experiment
(14) Integrated load experiment
(15) Controller integrated load and electricity consumption measurement
(16) Connect solar power generator to electrical grid
