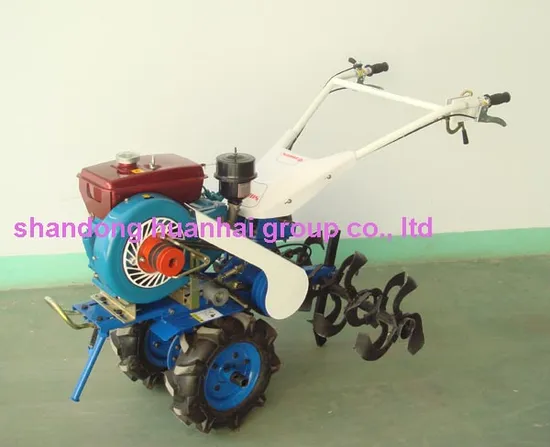

Sh41 Sh61 Agricultural Hand Tiller
| US$500.00 | 5 Sets (MOQ) |
Basic Info.
Model NO.
SH41 SH61
Application Field
Agriculture, Agriculture, Livestock, Aquaculture, Forestry
Farming Policy
Dry Cultivating Machinery, Dry Cultivating Machinery
Power Source
Diesel, Diesel
Operation
Soil Preparation Machinery, Continuous Running Operation, Soil Preparation Machinery
Traction Type
Traction, Traction
Drive Type
Chain Drive, Gear Drive
Arbor Configuration
Vertical Shaft, Horizontal Axis
Certification
ECE, EU, CE, CE
Color
Red, Red
Cutting Depth
5cm to 25cm
Transport Package
Seaworthy Packing
Specification
ISO, CE
Trademark
huanhai
Origin
Shandong, China
Production Capacity
20000 Units Per Year
Product Description
Powered by R170 diesel engines, it's simple and compact in construction, and light in paddy fields, Ideal for paddy fields, and has the advantage of reliability, long service life, easy and nimble to operate, as well as adaptable.With corresponding implements, the tractor can go on plowing, harrowing, ridging, seeding, fertilizing, harvesting and so on, and it can also transport equipped with a trailer of 0.75 ton, or as fixing power, can be used for threshing, grinding, milling and pumping.
| Tiller | Type | 1WG-4 (with 170 diesel engine) |
| Overall dimension (mm) | 1600*590*830 | |
| Tiller width (cm) | 45-90 | |
| Tiller depth (cm) | 5-25 | |
| Rotary blade | 24 | |
| Tire | 400-7 ( type pattern ) | |
| Shifting | 2+2 | |
| Engine | Model | 170F |
| Bore×Stroke (mm) | 70*70 | |
| Displacement (ml) | 0.269 | |
| Max power (kw/rpm) | 3.23 ( 4HP ) | |
| Type | single cylinder, air cooling, horizontal | |
| Start mode | Recoil | |
| Packing | Overall dimension (mm) | 1120*450*770 |
| N,W / G.W(kg) | 115/125 | |
| 40HQ (set) Loading quantity | 150/210-6 |
