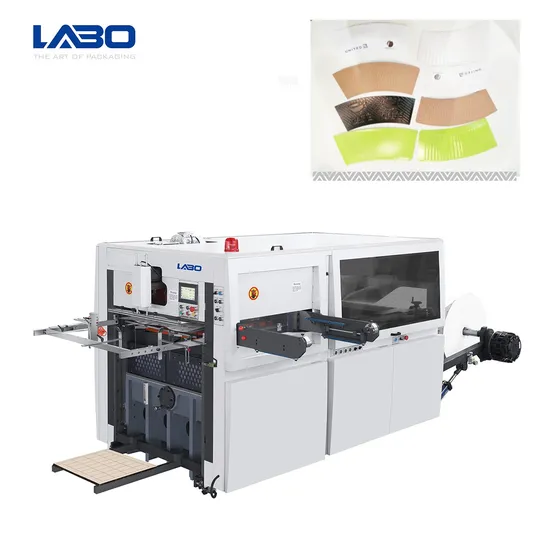

Automatic Paper Die Cutting Creasing Machine for Cigarette Case, Medicine Case, Envelopes, Paper Cup, Paper Bowl, Gift Bags
| US$35,000.00-38,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LBM
Species
Die Cutting and Creasing Machine
Imprinting Type
Platen
Placing Form of Template
Horizontal
Die Cutting Tool
Metal Mold
Computerized
Computerized
Automatic Grade
Automatic
Application
Paper Packaging Materials
Max Cutting Area
940mmx600mm
Cutting Precision
+-0.20mm
Paper Gram Weight
120-600G/M2
Air Pressure Requirement
0.5MPa
Air Pressure Consumption
0.25m3/Min
Max Cutting Pressure
280t
Weight
7.5t
Max Roller Diameter
1600mm
Total Power
12kw
Dimension
5500X2200X1800mm
Transport Package
Export Wooden Case Packing
Trademark
Labo
Origin
China
HS Code
8441100000
Production Capacity
300PCS/Year
Product Description
Introduction:
Automatic Paper Die Cutting Creasing Machine for Cigarette Case,Medicine Case, Envelopes, Paper Cup, Paper Bowl, Gift Bags.
It can finish paper embossing, creasing, die-cutting and automatic collection all steps in one time.
It is widely applied in various paper products with high precision and stability by die cutting creasing and embossing.
It could automatically complete the full process of die cutting, creasing, embossing and stack collection.
Product Made from Machine:
Main Technical Parameters:
Technical Specification (Medium Speed):
| Model | LBM-970x550 | LBM-1080x640 | LBM-1200x640 | LBM-1400x780 | |
| Max Cutting Area | mm | 950x510 | 1050x600 | 1160x600 | 1360x740 |
| Cutting Precision | mm | 0.20 | 0.20 | 0.20 | 0.20 |
| Paper Gram Weight | g/ m³ | 120-400 | 120-400 | 120-400 | 180-600 |
| Production Capacity | times/min | 90-140 | 90-140 | 90-140 | 90-120 |
| Air Pressure Requirement | Mpa | 0.5 | 0.5 | 0.5 | 0.5 |
| Air Pressure Consumption | m³/min | 0.25 | 0.25 | 0.25 | 0.25 |
| Max Cutting Pressure | T | 150 | 150 | 150 | 280 |
| Weight | T | 5.5 | 6 | 6.5 | 8 |
| Max Roller Diameter | mm | 1600 | 1600 | 1600 | 1600 |
| Total Power | kw | 12 | 12 | 12 | 14 |
| Dimension | mm | 4500x2200x1800 | 4500x2400x1800 | 4500x2600x2000 | 6000x3500x2200 |
Technical Specification (High Speed):
| Model | LBM-970x550 | LBM-1080x640 | LBM-1200x640 | LBM-1400x780 | |
| Max Cutting Area | mm | 950x520 | 1050x600 | 1160x600 | 1350x740 |
| Cutting Precision | mm | 0.20 | 0.20 | 0.20 | 0.20 |
| Paper Gram Weight | g/ m³ | 120-600 | 120-600 | 120-600 | 180-600 |
| Production Capacity | times/min | 90-140 | 90-140 | 90-140 | 90-120 |
| Air Pressure Requirement | Mpa | 0.5 | 0.5 | 0.5 | 0.5 |
| Air Pressure Consumption | m³/min | 0.25 | 0.25 | 0.25 | 0.25 |
| Max Cutting Pressure | T | 280 | 280 | 280 | 280 |
| Weight | T | 7.5 | 8.5 | 9.5 | 11 |
| Max Roller Diameter | mm | 1600 | 1600 | 1600 | 1600 |
| Total Power | kw | 14 | 14 | 14 | 20 |
| Dimension | mm | 5500x2300x1800 | 5500x2500x1800 | 5500x2800x2000 | 7000x3500x2200 |
Machine Detailed Pic for Reference:
Configuration:
| Stepper motor | Schneider (Germany) |
| Pressure adjusting motor | Taiwan |
| Servo driver | Schneider (Germany) |
| Color Sensor | Sick(Germany) |
| PLC | Schneider (Germany) |
| Frequency converter | Schneider (Germany) |
| Photoelectric switch | Leuze(Germany) |
| Main air cylinder | AirTAC (Taiwan) |
| Solenoid valve and other parts | AirTAC (Taiwan) |
| Pneumatic clutch | China |
| Main bearings | Germany |
| Main motor | FEIDA |
Packing and Loading of Machine:
