Low Frequency Transformer With Holder

Product Details

Product Description

Product Description

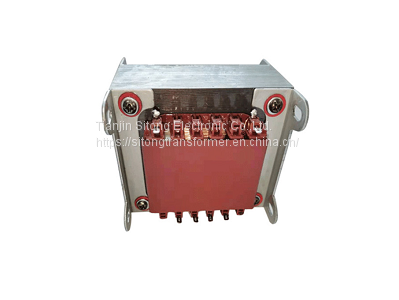

Low Frequency Transformer With Holder
PRODUCT DESCRIPTION
Low Frequency transformers are used in markets as industrial, vending or lighting where energy conversion is still needed. They are an easier solution than high frequency transformers, but as effective as the others. At Sitong Electronic we have different size of those transformers depending on the power range where is necessary to work.The low-frequency transformer is used to transmit signal voltage and power, and can also realize impedance matching between circuits. There is no difference in principle between a high-frequency transformer and a low-frequency transformer. But because the high and low frequencies are different, the transformer USES different cores.Low-frequency transformers generally use high permeability silicon steel sheet, high-frequency transformers use high-frequency ferrite core.
The low frequency transformers are used to transmit signal voltage and power, it could also match impendance in different circuits.
One-phase and three-phase (1 VA to 5 MVA)
Galvanically isolated or auto transformer
EI-/UI-/C-/ toroidal construction forms
AC/AC and AC/DC
Open, cast, (under vacuum) impregnated, painted or in housing
EN61558, UL, CSA, Lloyds standards
Features & Electrical characteristics:
Ferrite core shape: EI-24~EI-144
Ferrite core material: Mn-Zn
Bobbin shape: Vertical, Horizontal
Primary rated Voltage: 2VA ~ 500VA,
Input Frequency: 50HZ, 60HZ, 50/60HZ, 400HZ
Secondary Rated Voltage: 6000V.Max. Rated Current: 70 Amp.Max.
Dielectric Strength: (withstand without breakdown): 4000V max.
Hi-pot test: Customize
Safety: UL, CSA, TUV, VDE standard depending on customer’s requirement.
Applications Of Low Frequency Transformers:
A full range of applications relies on Step-Down Transformers, including:
motors
pumps
Heavy duty equipment
Industrial machinery
When selecting the best low-frequency transformers for their application, customers rely on our Sitong team for guidance; after assessing the specifications of their application, we develop a plan to design, manufacture, and deliver a custom transformer best suited for their needs. Each transformer meets the most stringent industry standards, and can be built to UL, CUL, VDE, and CE standards.
Thanks to its many years of experience, Sitong is able to meet the most diverse requirements in the manufacture of LF transformers:We could design the transformer by different cores as customer's requirements, such as high permeability silicon steel sheets, Nickel-Zinc sheets, permalloy sheets, etc.We can accommodate orders of virtually any size or complexity. To learn more about our custom low-frequency transformer, contact us today.
