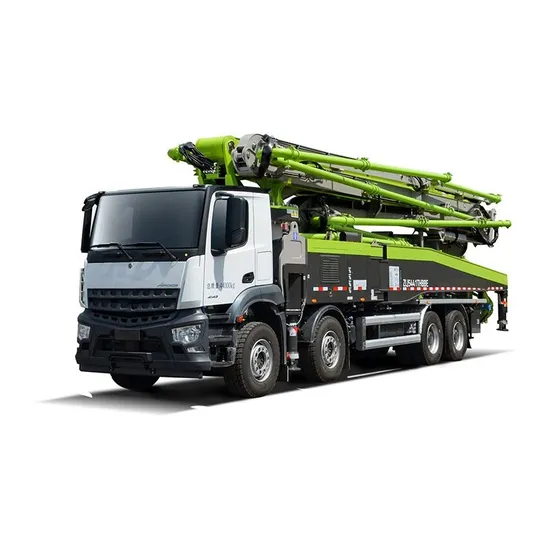

China EXW Price Zoomlion 52m Concrete Pump Truck 3-Axles Zlj5441thbke Chassis 52X-6rz
Basic Info.
Model NO.
52x-6rz
Type
Concrete Pump
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
180m²/h
Feeding Height
1540mm
Vibrating Amplitude
1.4mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Green
Maximum Theorical Output
180 M3/H
Max. Theor. Concrete Output Pressure
9MPa
Rated Working Pressure
35MPa
Concrete Hopper Capacity
600L
Pumping Frequency
27min-1
Hydraulic System Type
Closed Loop
Distribution Valve
S Valve
Oil Cylinder Dia.×stroke
130*2100mm
Concrete Cylinder Dia.×stroke
230*2100mm
Section Numbers
6
Maximum Vertical Reach
51.1m
Maximum Horizontal Distance
45.8m
Minimum Unfolding Height
13.1m
Engine Power
341kw
Transport Package
According Customer′ S Requirements
Specification
9300*11975*10422
Origin
China
HS Code
8705909100
Packaging & Delivery
Package Size
9300.00cm * 11975.00cm * 10422.00cm
Package Gross Weight
45000.000kg
Product Description
China EXW Price Zoomlion 52m Concrete Pump Truck 3-Axles Zlj5441thbke Chassis 52X-6rzAdvavtages:
• Compact in design, 52m pump mounted on a 3-axle truck.
• Active boom vibration control technology(ABC): All-position active vibration reduction technology of boom, reducing vibration by 50%. More stable boom, more safety.
• Boom intelligent damping technology: The soft control of booms in starting, slewing and stopping reduces the impacting vibration of booms and therefore makes the vehicle operate more stably, reliably and safely.
• Accurate pumping control technology(APC): Great leap of pumping accuracy and adaptability, improving pump efficiency.
• Adaptive concrete material pumping technology: Improve pumping control system for poor concrete with segregation and big viscosity, and auto-adaptive pumping mode, reducing the block rate by more than 50%.
Dual-pump and dual-loop hydraulic system: Less hydraulic impact, High efficiency, Low failure rate.Three-stage fault diagnosis: boot self-check, process self-chec and shutdown detection is adopted to realize the overall control of the product's health condition.Long life wearing parts: Reduce working cost remarkably. Continuously improve wearing part's life by using new material, new process and new designing.
Product Parameters
| Model | Unit | 52X-6RZ | |
| Pump Unit | Max. Theor. output | m3/h | 180 |
| Max. Theor. concrete output Pressure | MPa | 9 | |
| Rated working pressure | MPa | 35 | |
| Pumping frequency | min-1 | 27 | |
| Hopper capacity | L | 600 | |
| Filling height | mm | 1540 | |
| Hydraulic system type | | closed loop | |
| Distribution valve | | S valve | |
| Oil cylinder dia.×stroke | mm | φ130×2100 | |
| Concrete cylinder dia.×stroke | mm | φ230×2100 | |
| Hydraulic oil cooling | | Wind cooling | |
| Recommended concrete slump | cm | 12~23 | |
| Max. aggregate dimension | mm | 40 | |
| Boom Section | Structure type | | 52X-6RZ |
| Placing depth | m | 52 | |
| Max. horizontal distance | m | 48 | |
| Max. placing depth | m | 37.6 | |
| Slewing angle | | ±270° | |
| Boom number | | 6 | |
| The length of boom section | mm | 10410/9120/8690/9680/6600/3500 | |
| Sections folding angle | | 90°/180°/180°/240°/195°/210° | |
| Pipe diameter | mm | 125 | |
| End hose length | mm | 3000 | |
| Min. height of opening placing boom | mm | 10900 | |
| Outriggers span (front×rear×side) | mm | 9300×11975×10422 | |
