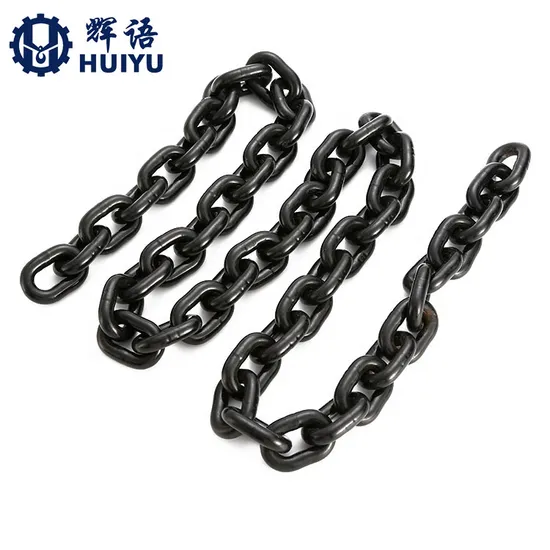

G80 18 X 64mm 20X80mm Round Link Chain Mining Chain G80 in DIN22252 Chain
Basic Info.
Model NO.
G80
Surface Treatment
Electroplating
Feature
Heat Resistant
Chain Size
1/2"*3/32"
Structure
Welded Chain
Color
Black
Brand
OEM
Art
Welded
Surface
Polish Toss
Function
Drag Chain
Transport Package
Steel Drum or as Required
Specification
7.5-80 mm
Trademark
Huiyu
Origin
Hebei, China
HS Code
7315890000
Production Capacity
30000 Meters/Year
Packaging & Delivery
Package Size
120.00cm * 100.00cm * 120.00cm
Package Gross Weight
800.000kg
Product Description
Lifting and rigging chain has been one of the most popular rigging products on the market for many years, mainly due to its strength, durability, and ease of use. All our alloy steel rigging and lifting chain is heat treated to offer industry leading load capacity and durability. Some steel rigging chains are approved for overhead lifting, while others are not, so it is important to always know what type of lifting chain your specific rigging application requiresG80 alloy steel lifting chain Specifications sheet as belows:
| Size(mm) | Inside Width(mm) | Outside Width(mm) | Approx Weight KG/M | W.L.L. Ton | Test Load KN | B.L. KN |
| 6 x 18 | 7.5 | 21.0 | 0.79 | 1.1 | 27 | 45.2 |
| 7 x 21 | 9.0 | 24.5 | 1.07 | 1.5 | 37 | 61.6 |
| 8 x 24 | 10.0 | 28.0 | 1.38 | 2.0 | 48 | 80.4 |
| 10 x 30 | 12.5 | 35.0 | 2.20 | 3.2 | 76 | 125 |
| 12 x 36 | 15.0 | 42.0 | 3.10 | 4.6 | 109 | 181 |
| 13 x 39 | 16.3 | 46.0 | 3.80 | 5.0 | 128 | 214 |
| 16 x 48 | 20.0 | 56.0 | 5.63 | 8.0 | 192 | 320 |
| 16 x 49 | 24.5 | 59.5 | 5.71 | 8 | 192 | 320 |
How do we control quality:
a) Pay attention to adaptation for manufacture process
b) Approval report for shipment
c) Third party inspection is accepted
d) Keeping quality guarantee for a long period
e) Guaranteeing quality inspection of each product before assembly and packing.
f) Comply with ISO 9001
Any request or further qustions do not hesitate to let us know:
