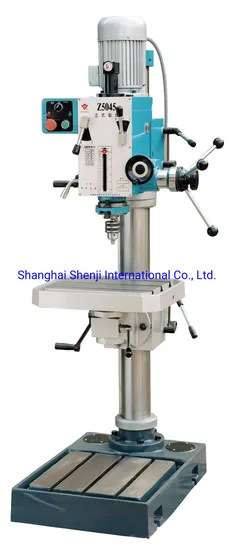

Vertical Drilling Machine Z5032 Z5040 Z5045
| US$1,000.00-3,000.00 | 1 unit (MOQ) |
Basic Info.
Model NO.
Z5032 Z5040 Z5045
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE
Condition
New
Transport Package
Wooden Case
Trademark
SJMC
Origin
China
HS Code
8459409000
Production Capacity
100 Set / Month
Product Description
VERTICAL DRILLING MACHINE Z5032 Z5040 Z5045| SPECIFICATION | MODEL | ||
| ITEM | Z5032 | Z5040 | Z5045 |
| Max.drilling capacity | 32mm | 40mm | 45mm |
| Spindle taper | M.T.3 or R8 | M.T.4 | M.T.4 |
| Spindle travel | 130mm | 130mm | 130mm |
| Step of spindle speed | 6 | 6 | 6 |
| Range of spindle speed 50Hz | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
| 60Hz | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m |
| Min.distance from spindle axis to column | 283mm | 283mm | 283mm |
| Max.distance from spindle nose to worktable | 725mm | 725mm | 725mm |
| Max.distance from spindle nose to stand table | 1125mm | 1125mm | 1125mm |
| Max.travel of headstock | 250mm | 250mm | 250mm |
| Swivel angle of headstock(horizontal/perpendicular) | 360°/±90° | 360°/±90° | 360°/±90° |
| Max.travel of worktable bracket | 600mm | 600mm | 600mm |
| Worktable size of avaliablity | 380×300mm | 380×300mm | 380×300mm |
| Swivel angle of table horizontally | 360° | 360° | 360° |
| Table leaned | ±45° | ±45° | ±45° |
| Size of stand worktable of avaliability | 417×416mm | 417×416mm | 417×416mm |
| Motor Power | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
| Packing size | 1850×750×1000mm | 1850×750×1000mm | 1850×750×1000mm |
| Loading amount | 18pcs/20'container | 18pcs/20'container | 18pcs/20'container |
FEATURES:
*Drilling, milling and tapping;
*Head swivels 360° horizontally;
* Headstock and worktable up&down perpendicularly;
*Super highcolumn;
*Precision micro feed;
*Positive spindle lock;
*Distinct auto device for releasing tools,operating very easilly;
*Gear driven,lower noise.
STANDARD ACCS.:
*Wedge
*Tie rod
*Washer
OPTIONAL ACCS.:
* Double speed motor;
*Bench vice 90mm,125mm,160mm;
*Milling holder
*Drill chuck and arbor;
*Milling chuck(8pcs)
*Heightened column'
*Coolant system;
*Working lamp;
*Auto-tapping system;
*Boring bar;
*Clamping kits(58pcs)
