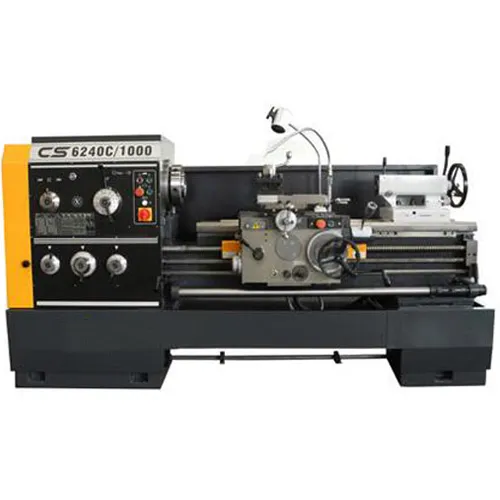

Heavy Duty Horizontal Metal Gap Bed Lathe Machine (CS6250C)
| US$4,500.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CS6250C
Type
Horizontal Lathe
Processing Accessory
Metal Parts
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max. Swing Over Bed
510mm
Max. Swing Over Carriage
300mm
Width of Bed
400mm
Section of Turning Tool
25mm X 25mm
Spindle Hole
50/80/105mm
Spindle Taper
Mt6
Max. Tailstock Spindle Travel
150mm
Tailstock Spindle Diameter
75mm
Main Motor
7.5kw (10HP)
Dimension(L*W*H)
3700*1140*1750mm
Transport Package
Wooden Case with Plastic Cover Inside
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
Shangdong, China
HS Code
84589900
Production Capacity
200sets / Month
Product Description
Product DescriptionApplication:
• The guide surface hardended by surper frequency and precision ground
•All gears hardended precision ground•Spindle
with high rigitidy and accuracy
• Rapid feed structure in apron in apron
• Adopt clutch system in headstock
Product Parameters
| Specification | CS6250B/C | CS6266B/C | CQ6280B/C |
| Max. swing over bed | Φ500mm | Φ660mm | Φ800mm |
| Max. swing in gap | Φ710mm | Φ870mm | Φ1000mm |
| Max. swing over slide | Φ300mm | Φ420mm | Φ560mm |
| Max. workpiece length | 1000/1500mm / 2000/3000mm | 2000/3000mm | |
| Spindle bore | Φ82mm/105mm | ||
| Type of spindle | ISO 702/II NO.8 com-lock type | ||
| Spindle speed | 24steps 9-1600/12 steps:36-1600rpm | 24steps 8-1400/12 steps:30-1400rpm | |
| Spindle motor | 7.5kw | ||
| Diameter of quill | Φ90mm | ||
| Max. travel of quill | 150mm | ||
| Taper of quill | MT5 | ||
| Tool O.D. size | 4/25×25mm | ||
| Max. X travel | 145mm | ||
| Max. Z travel | 320mm | 310mm | 320mm |
| X feed range | 93 kinds 0.027-2.73mm/65 kinds 0.063-2.52mm/r | ||
| Z feed range | 93 kinds0.028-6.43mm/65 kinds 0.027-1.07mm/r | ||
| Metric threads | 48 kinds(0.5-224)/22 kinds 1-14mm | ||
| Inch threads | 48 kinds72-1/8tpi/25 kinds 28-2t.p.i | ||
| Module threads | 42 kinds 0.5-112/18 kinds 0.5-7πmm | ||
| Diametric pitch | 42kinds 56-1/4DP/24 kinds 56-4t.p.i.π | ||
| Cooling pump | AOB-25 150W 25L/min | ||
| Length | 2632/3132mm/3632/4632mm | 3365/4365mm | |
| Width | 975mm | 1340mm | |
| Height | 1270mm | 1450mm | 1490mm |
| N.W | 2100/2300kgs/2500/2900kgs | 3000/3200kgs | |
| G.W | 2200/2400kgs/2600/3000kgs | ||
| Application: • The guide surface hardended by surper frequency and precision ground •All gears |
Standard Accessories:
1) 3-jaw chuck
2) 4-jaw chuck
3) face plate
4) steady rest
5) follow rest
6) face plate
7) work lamp
8) coolant system
9) splash guard
10) foot brake
11) dead centers
12) tool box tools Optional accessories:
1) 2- axis Sino DRO,KA300 seires,5 μm
2) 3-axis Sino DRO
3) taper attachment
4) Quick change toolpost
5) Live center-MT5
Detailed Photos
