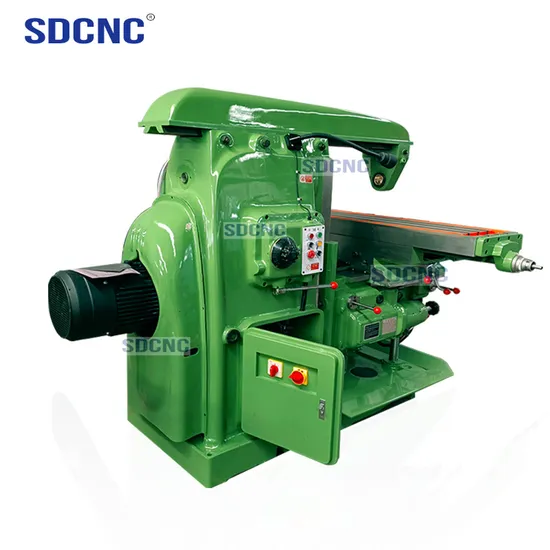

Horizontal X6140 Heavy-Duty Manual Milling Machine Universal Lifting Table
| US$18,500.00-19,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6140
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Table Size
1700*400mm
Table Load
800kg
Spindle Motor Power
11kw
Feed Motor Power
1.5kw
Transport Package
Wood Packaging
Specification
2560*2160*2100
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
2560.00cm * 2160.00cm * 2100.00cm
Package Gross Weight
4200.000kg
Product Description
The main performance characteristics:
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation
Application:
1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,
molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and
other gear. 3. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the
ideal processing equipment.
SPECIFICATIONS
| Specifications | Units | X6140 |
| Table size | mm | 1700×400 |
| Table load | kg | 800 |
| T slot(number-width-pitch) | mm | 3-18-90 |
| Table travel | mm | 900/880 315/300 350/330 |
| Range of table feed | mm /min | XY:23.5-1180 Z:8-394 |
| Rapid speed of table | mm /min | XY:2300 Z:770 |
| Spindle taper | ISO50 7:24 | |
| Spindle speed range | rpm | 30-1500 (18 steps) |
| Swivel angle of table | ° | ±45 |
| Distance between spindle axis and table surface | mm | 30-380 |
| Spindle motor power | kw | 11 |
| Feed motor power | kw | 1.5 |
| Weight | kg | 3950/4200 |
| Overall dimension | mm | 2560×2160×2100 |
