Cy8c27543-24axi embedded microcontroller cypress original stock

Product Details

Product Description

Product Description
CY8C27543-24AXI
Specification information:

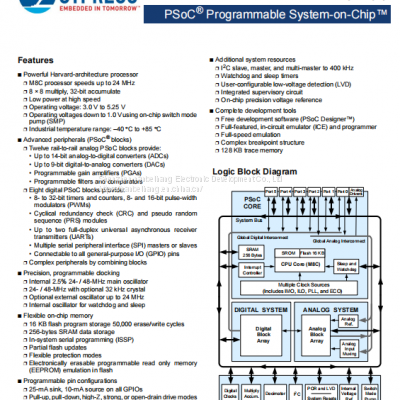

Data list: cy8c27x43
PCN components / place of origin: qualification test / finish site 15 / DEC / 2013 qualification test site 13 / Mar / 2014 GSMC manufacturing merge 15 / may / 2014 qualification copper wire bonds 18 / Jun / 2014 assembly site transfer 22 / Jun / 2015
PCN others: multiple updates 27 / Mar / 2015
Standard package: 160
Category: integrated circuit (IC)
Home: Embedded - microcontroller
Series: PSoC ® 1 CY8C27xxx
Packaging: pallets
Core processor: m8c
Core size: 8-bit
Speed: 24MHz
Connectivity: I ² C，SPI，UART/USART
Peripherals: Por, PWM, WDT
I / O number: 40
Program storage capacity: 16kb (16K x 8)
Program memory type: flash memory
EEPROM capacity:-
Ram capacity: 256 x 8
Voltage power supply (VCC / VDD): 3 V ~ 5.25 V
Data converter: A / D 4x14b; D/A 4x9b
Oscillator type: internal
Working temperature: - 40 ° C ~ 85 ° C
Package / housing: 44-lqfp
Supplier device package: 44-tqfp (10x10)
Matching: 428-2975-nd - Kit PSoC miniprog3 program debug428-2021-nd - kit miniprog psoc428-1527-nd - PSoC EMU pod feed for 8-dip428-1884-nd - Kit ice pod for cy8c27 dip428-1902-nd - PSoC pod for cy8c27428-1999-nd - Evaluation pod for cy8c27x43428-1899-nd - PSoC pod feed for 44-tqfp428-1528-nd - PSoC EMP u pod feed for 28-dip428-1585-nd - board demo miniprog1428-1879-nd - PSoC pod for cy8c27 qfn428-1 890-ND - PSOC POD FEET FOR 8-DIP428-1926-ND - KIT REF DESIGN LIN BUS
Other name: 428-1599cy8c2754324axi
