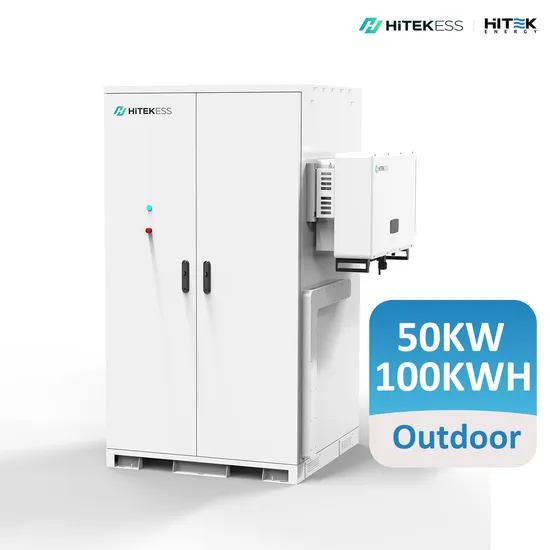

Hitek Energy Lithium Ion Battery Cabinet Outdoor Bess Industrial & Commercial Energy Storage System with 50kw 100kwh Connection

Product Description

Product Description
HiTek Hybrid system is a combination of solar energy storage with grid connection.
It has battery backup to store power and has the ability to feed surplus electricity into main grid.
Warranty
How It Works
Configuration Details

50KW SOLAR SYSTEM CONFIGURATION
No.	Product name	Specification mode	Unit	Quantity	Remark
1	Solar Module	BSM560M10-72HPH	pcs	96	16pcs per string, 6 strings totally; Totally 53.76KW
2	PV Combiner Box	6 input and 6 output	pc	1	1000V open circuit voltage, component short circuit current 14.14A
3	Hybrid Inverter	BSE50KH3	pc	1	3 Phase 400V 50Hz 4 groups of mppt 2 strings per group
4	Lithium Battery	51.2V 280Ah(including BMU/Collecting harness/ power cable)	pack	7	7 pcs in 1 group, totally 100.352KWH
5		High Voltage Control box	piece	1
6		Battery Rack	set	1
7		Battery-inverter cable	piece	2	Estimated quantity: Current meets 100A, two batteries per cluster 35mm2 cable
8	Remote Monitoring	WiFi Monitoring	set	1	equipped
9	MC4 Connectors	one-to-one correspondence	pair	24
10	PV Cable	PV1-F 1*4mm²	meter	600
11	Mounting Kits	Customized Designed Roof/ Ground Mounting Kits	set	1
HITEK ENERGY use ONLY Reliable Approved Equipment.

Save On your domestic and commercial utility bills with HITEK ENEERGY.
HiTek will make your new home more comfortable, more valuable, and a place to be proud of for a long time to come.
System Components
Mono Solar Panel
Model: HT560M-72
Peak Power Watt: 560Wp
Open Circuit Voltage (Voc/V): 49.84V
Short Circuit Current (Isc./A): 14.14A
Voltage at Maximum Power (Vmp./V): 41.08V
Current at Maximum Power (Imp./A): 13.64A
Dimensions: 2279*1134*35mm
Weight: 28.0±3% kgAll-in-one Hybrid Solar Inverter
All-in-on hybrid solar inverter, which increases energy independence for homeowners and commerical users.
Smart Monitoring & Remote Firmware Upgrade
Built-in Anti-feed-in Function
AFCI (Optional) & Rapid Shutdown Ready
Support for Time-of-use Optimization
Configurable Operation ModesOnline Monitoring System
Open Station Supports one-click
Installation and registration Problem
Support one-click dispatch and navigation
Safe operation, traceable logs, etc.
Support full lifecycle data storage to ensure
data security and reliabilitySolar Battery Pack
Rack mounted
Deep Cycle long lifespan
High discharge performance
Easy installation and Maintenance-free
AGM/GEL/LiFePO4 Lithium Ion Battery Type
2V/12V/48V/High Voltage Battery
More than 6000 times, up to 90% DOD
Wide suitability of ambient temperature rangeDC & AC Disconnect Switch
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A, 20ADC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC /1000VDC (TUV)
Rated Current: 55A, 70A
Colors: Black For STD, Red Optional.
Lifetime: ≤25 YearsPV MOUNTING SYSTEM
MOUNTING RAIL & RAIL SPLICE KIT: AI60O5 & SUS304 BOLT
MID&END CLAMPS: 30, 35, 40MM
L FOOT ASPHALT SHINGLE MOUNT & HANGER BOLTOPTIONAL
CABLE CLIPS &TIE OPTIONAL
GROUND CLIPS & LUGS OPTIONAL
Packaging & Shipping
HiTEK Project Case
Company ProfileHITEK ENERGY gets founded in 2018. As superior photovoltaic manufacturer, HITEK ENERGY's dedicated to providing sustainable and renewable energy solutions to strengthen homes, businesses and factories.
We provide tailored solar energy solutions for backup, residential, and commercial needs, catering to your unique power requirements.
At HITEK ENERGY, your satisfaction is our top priority. We use ONLY Reliable Approved Equipment.
Helping you save money on your electric bill is our responsibility. We take seriously.
We understand that you need more than just a solar system manufacturer, you need a brand that you can partner with for life.Let's work together for a better, brighter and greener future.
