800mm Length Custom Lab Desktop Coating Machine for Battery Electrode Coating
| US$3,500.00-7,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
TOB-JYCM-800
Type
Coating Production Line, Film Coater
Coating
Plating
Substrate
Steel
Certification
CE
Condition
New
Automatic Grade
Automatic
Packaging Material
Wood
After-Sales Service
1year
Packaging Type
Wooden Box
Application
Battery
Source Voltage
AC110V-220V, 50/60Hz
Weight
About 70kg
Transport Package
Wooden Box
Specification
L1000mm× W350mm× H320mm
Trademark
TOB
Origin
China
Production Capacity
10000 Set/Month
Product Description

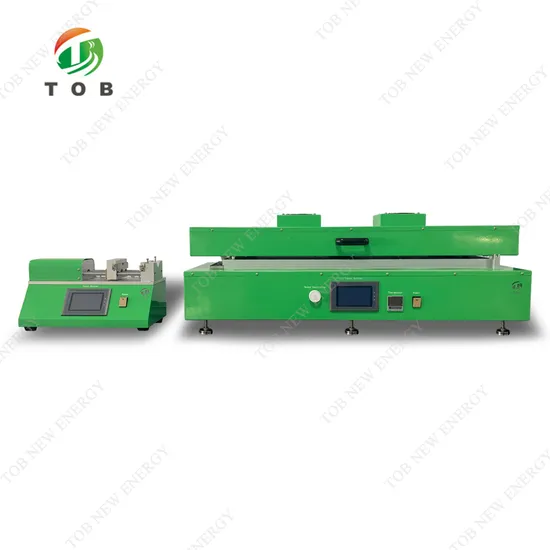

800mm Length Custom Lab Desktop Coating Machine for Battery Electrode Coating
Adopt slot die coating method (the coating process such as scraper coating, four-side coating device and wire rod coating can be selected). Mainly used for sheet type material surface coating of lithium battery substrate coating, solar photovoltaic film and polymer conductive film, OLED and other fields.
* Strong wind circulation drying heating, digital display temperature control, maximum working temperature 150ºC;
* Digital display timer, freely set drying time;
* Coating speed can be adjusted within the range of 0 ~ 120mm / s;
* Vacuum aluminum pan for quick placement or removal of substrates;
* The stroke can be adjusted by the stroke switch between 0 ~ 800mm;
* Squeegee with adjustable coating thickness (0.01mm accuracy);
* Small size could saves space;
* Exquisite appearance, sheet metal adopts three-dimensional geometric design, simple and beautiful;
| Model | TOB-JYCM-800 |
| Voltage | AC110V-220V, 50/60Hz, Single Phase |
| Coating method | Slot die flat plate film coating, standard equipped with TOB-JY100 Slot die film applicator |
| Coating drive | Motor drive, coating speed with step-less set and adjusted in the touch screen |
| Coating speed | 0~200mm/s |
| Max Stroke | The stroke can be adjusted by the stroke switch between 0~800mm |
| Vacuum plate | With vacuum aluminum plate |
| Vacuum plate size | L900mm×W200mm×H32mm |
| Adjustable range of scraper | 0.01~3.5mm |
| Heating and drying system | Room temperature~200ºC, digital display temperature controller, accuracy±1ºC |
| power supply | 220V/50Hz |
| Weight | 70KG |
| Dimensions | L1000mm×W350mm×H320mm |
| Standard accessories | Applicator , Crossbar, Collection box |
