Highly Efficient Emulsion Hoist for Material Handling in Mines

Highly Efficient Emulsion Hoist for Material Handling in Mines

US$9,500.00-14,500.00 3 Pieces (MOQ)

Basic Info.

Type
Hydraulic Hoist
Sling Type
Chain
Lift Speed
<2m/min
Maximum Lifting Height
10m
Chain Falls
2
Certification
ISO9001:2000, China Coal Mine Safety Certificate
Condition
New
Color
Orange
Rate Lifting Capacity
10t
Net Weight
80kg/100kg
Working Medium
Fire-Resistant Hydraulic Fluid/Hydraulic Oil
Applicable Industries
Mining Industry
Lifting Chain
G80/G100
Transport Package
Wooden Case
Specification
397mm× 200mm× 435mm
Trademark
Haitong
Origin
Shanxi, China
HS Code
8425190000
Production Capacity
5000 Pieces/Year

Product Description

Product Description

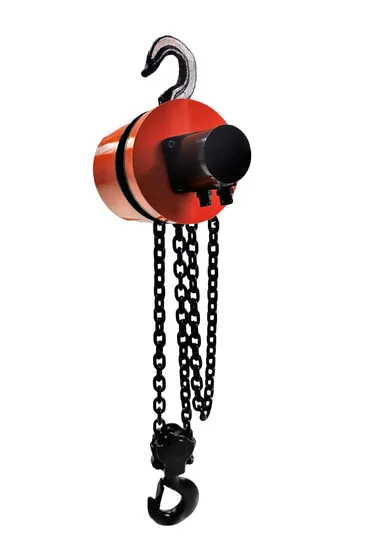

The emulsion chain hoist is a commonly used lifting tool in the comprehensive mining face of coal mines, primarily for the transportation of materials in underground mining operations, and is also suitable for application in other mining industries. The product uses emulsion liquid with low viscosity as the power source, which perfectly matches the power medium of hydraulic supports and other equipment, while also being compatible with various working media such as hydraulic oil and water, meeting the needs of underground use. The product comes with a quick-coupling connector, which can be directly connected to the high-pressure rubber hose on the hydraulic support without the need for any additional auxiliary equipment.
The emulsion chain hoist consists of an emulsion motor, a reduction mechanism, a hook, a lifting chain, and high-pressure rubber hoses, controlled by an operating valve to meet the lifting needs of equipment and materials in the underground tunnels.

Detailed Photos

Product Parameters
Item Unit Parameter
HRD3 HRD5 HRD10
Dimensions mm 397×200×435 397×200×435 397×200×435
Weight kg 40 60 100
Rated Working Pressure MPa 20 20 20
Lifting Speed m/min 1.8 1.8 0.9
Lowering Speed m/min 2.2 2.3 1.1
Lifting Height m 3-6 3-6 3-6
Rated Motor Speed r/min 300 300 300
Rated Flow Rate L/min 35 40 80
Rate Lifting Capacity T 3 5 10
Tilt Lifting Angle degrees <15 <15 <15
Working Medium 1.5--5% Emulsion Fluid 1.5--5%
Emulsion Fluid
1.5--5%
Emulsion Fluid

Certifications
Chinese Coal Safety Certificate
Product Patent
FAQ

Q1: Can we have sample?
A: Yes of course.
Q2: What are your terms of packing
A: Packed in the standard wooden case, or as you required.
Q3: How long is the delivery time?
A: Normally, 10 days after receiving the deposit. The exact delivery time depends on the items and the quantity of your order.
Q4: Can you manufacture according to the samples?
A: Yes. We provide with OEM service based on the design drawing or the sample.
Q5: Can we have our logo or design for goods?
A: Yes, customized logo and design are available.
