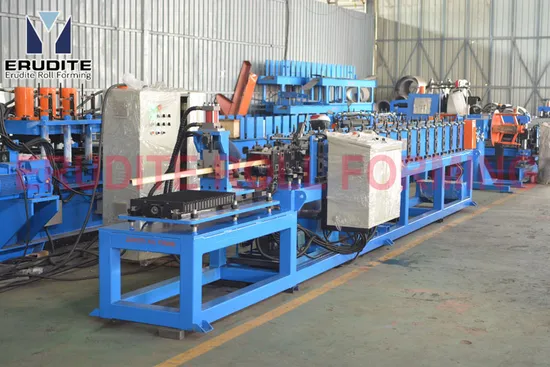

Yx28.5-67.5 Batten Roll Forming Machine with Servo Flying Cut 20mpm

Product Description

YX28.5-67.5 roll forming machine for batten profile with servo flying cut 20mpm
If customization:Yes
Type:YX28.5-67.5
Brand:Erudite roll forming
Technical Parameters
The main technical parameters are for your inference only.
Only if you provide the profile required or the real objects of sectional materials, and we will offer the accurate parameters.

(1) 1.5Tons twins coils un-coiler
Description	There are different choices, please turn to the catalogue of un-coiler
(2) The general machine parameter
Suitable roll forming material	Painted steel, Galvanized
Thickness	0.4-0.6mm
Feeding width	110mm
Frame design	Wall-plate/Stand-frame-design
Roll stages	15 stages
Material of forming roller	Cr12, CNC lathes, heat treatment
Shafts Diameter	Φ65mm
Main motor power	7.5KW, frequency speed control
Max. Line speed of roll former	20-25m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power	5.5KW
Material of cutting blade	Cr12Mov, heat treatment
Electric Standard	380V /50Hz/3PH or as the customer's requirements
Major Color of Machine Painted	RAL5015 (Blue) or as per customer's requirements
(3) PLC Control system
PLC	Siemens brand
Touch Screen	Siemens brand
Inverter	Shihlin
Servo motor and controller	Delta
Encoder	Omron brand
(4) Product rack
Description	un-powered, 3 meters,1 unit
(5) About us
Please visit the web site: eruditerfm.en.made-in-china.com for detailed information

Xiamen Erudite Machinery Co., Ltd is a professional manufacturer specializing in the design and production of roll forming machines and bending/curving machines to serve the metal building industry.
Before the inception of its establishment, Erudite invested and set up its own R & D team to enhance the technologies in design, production and quality control. Erudite has experienced engineers and technicians who have worked in this field of business for over 10 years individually. Erudite can provide customized, accurate and comprehensive design for machinery according to the clients' profile drawings and technical requirements. Erudite has actively invested in research and development, obtained a number of patents, and has been selected as a National High-tech Enterprise in 2021.Erudite equipped with professional production technical management personnel, supporting series supply chain services from design, production, and technical support to after-service. The professional sales team in Erudite is responsible for providing professional recommendation and solutions to clients before sales and after sales to ensure our customers can maximize their investment and meet their production requirements/demands with a fruitful return on investment.
Erudite is willing to be your sincere and trustworthy partner!
