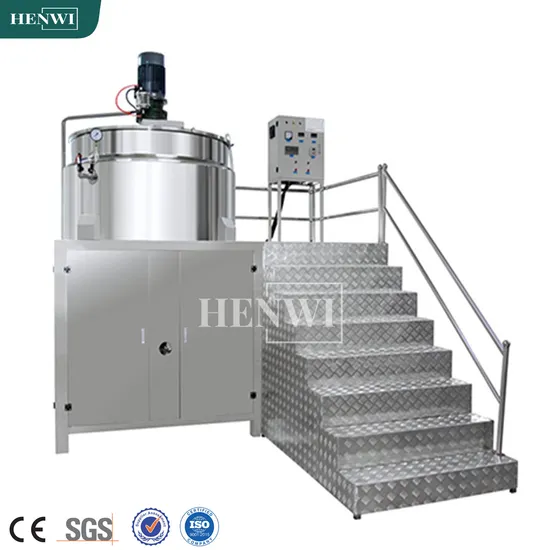

High Speed Shampoo Mixer Mixing Tank Liquid Soap Making Mixing Machine
| US$11,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HWHM-2000L
Application
Liquid, Liquid with Suspended Solids, Viscous Fluid, Shampoo/Gel/Liquid Soap
Application Area
Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Food, Pharmaceutical, Water Base Chemical
Certification
CE, ISO
Condition
New
Control System
Button Control
Main Material
Stainless Steel, SUS304/SUS316
Mixing Capacity
50-10000L Customized
Mixing Drum Shape
Drum
Speed Control
Variable Speed
Speed Range
0-65 Rpm
Stirring Type
Spiral
Temperature Control
With Cooling System
Type
High Shear Homogenizer
Warranty
1 year
Working
High Speed Mixer
Name
High Shear Homogenizer Emulsify Tank
Materials
Stainless Steel 316L/304
Mixing /Homogenizer Motor Brand
Siemens/ABB
Top Stirrer System
0-65rpm
Bottom Homogenizer System
0-3600rpm
Heating System
Jacket Heating System
Heating Method
Steam Heater / Electric Heater
Thickness of Tank
3, 4, 5, 6, 7, 8, 9.....12
Free Part
Platform and Stairs
Control Panel
PLC Control Panel/ Press-Button Control Panel
Volume
50-10000L
Lead Time
15-35 Days
Applications
Cosmetic and Daily Chemical Product
Mixer Type
Homogenizer
Layout Type
Verticle
Transport Package
Wooden Case
Specification
10cbm
Trademark
Henwi
Origin
China
HS Code
8474390000
Production Capacity
30-50 Set/Month
Product Description
HENWI TECHNOLOGY Manufacturer of Cosmetic | Pharmacuetical | Food | Daily Chemical industrial | GMP StandardProduct Description
Homogenizing mixer machine has high-speed disperser, mixing and disperse viscously, solid and liquid, etc. various kind of raw material will be dissolved which is such as AES, AESA LSA, during liquid production which can save energy consumption and shorten production the and shorten production period. To produce liquid washing products, like shampoo, liquid soap, bath shower, dishwashing, hand washing, lubricating oil, etc.
| Features: 1.The Mixing system adopts single-direction or double-direction scraping Mixing so as to satisfy product of different technological requirements. 2. Siemens/ABB inverter speed regulation can meet the production of different process requirements. 3.Made of imported SUS304 or SUS306L stainless steel.The tank body and pipeline are polished with mirror surface, which fully meets the GMP standard. 4. The heating method mainly include electric or steam heating for customer's choice. 5. The stainless steel electric control cabinet can completely supervise the operation of equipment, and display data, such temperature and blending rotation speed etc. 6.The tank body is equipped with a jacketed insulation layer, and the insulation material is made of polyurethane foam, which has good insulation performance |
| 1 | Model | HWHM-2000L |
| 2 | Working capacity | 2000L |
| 3 | Heating method | Steam/electric |
| 4 | Mixer | Frame wall scraper mixing |
| 5 | Mixing motor power | 7.5KW |
| 6 | Mixing Speed | 0-65rpm |
| 7 | Homogenizer | Bottom homogenizer Internal and external circulation(option) |
| 8 | Homogenizer power | 15KW |
| 9 | Control method | Button control |
| 10 | Frequency inverter | Delta/Panasonic/Mitsubishi |
| 11 | Electrical components | Delixi |
| 12 | Tank materials | Inner layer 7mm/SUS316Middle layer 6mm/SUS304Outer layer 4mm/SUS304 |
| Capacity | Mixing power(KW) | Heating(KW) | Homogenizer(KW) | Size(mm) |
| 50L | 1.1 | 6/Steam | 2.2 | 1200*500*1600 |
| 100L | 1.5 | 9/Steam | 3 | 1300*600*1700 |
| 300L | 2.2 | 12/Steam | 4 | 2150*1450*1900 |
| 500L | 3 | 18/Steam | 5.5 | 2300*1600*2500 |
| 1000L | 5.5 | 27/Steam | 11 | 2700*1900*2700 |
| 2000L | 7.5 | 36/Steam | 15 | 2900*2800*3200 |
| 3000L | 11 | 48/Steam | 22 | 3000*3300*3700 |
| 5000L | 15 | Steam | 30 | 3400*3800*4100 |
| 10000L | 18.5 | Steam | 45 | 4200*4500*4800 |
