5 Compartments 45000L 40cbm 45cbm 50cbm 3-Axles Aluminium Fuel Tanker Semi Trailer

Product Description

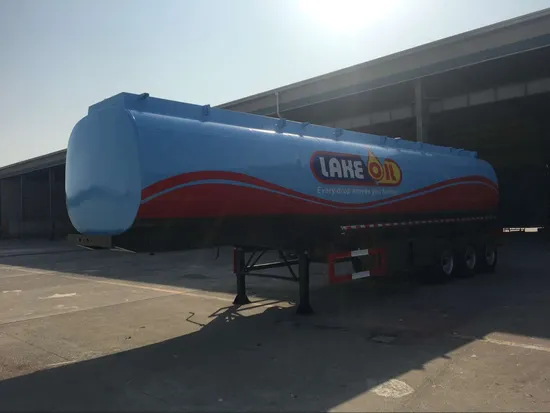

3 Axles Oil Tank Semi Trailer with BPW Axle
Specifications
(1) Oil tank semi trailer
(2) 3 Axles
(3) Loading Capacity: 30000KG-50000KG
(4) Total Volume: 30-60CBM
(5) Tank Body Material: 5mm or 6mm/Q235 carbon steel or Aluminum alloy
(6) Certification: ISO9001 CCC,SGS
Technical Parameters

Gross Weight	About 50000KG
Kerb Weight	About 7500KG-12000KG
Loading Capacity	30000KG-50000KG
Dimensions	12000x2500x3990mm Exact size depends on the final design
Tank Body Shape	Optional Round or Suare
Total Volume	30-60CBM
Tank Body Material	5mm or 6mm/Q235 carbon steel or Aluminum alloy
End Plate	5mm or 6mm/Q235 carbon steel or Aluminum alloy
Manhole Cover	Carbon steel or aluminum alloy API manhole cover
Bottom Valve	Aluminum API Pneumatic Bottom Valve
Discharging Valve	Diameter is 3 inch or 4 inch
Compartments	Optional 1 or 2 or 3 or 4 or more compartments
Discharging Pipe	4'' rubber hose,2 pcs,6000mm/each
Axles	13T/16T, BPW Brand
Tire	12.00R20, 11.00R20, 12.00R22.5, 315/80R22.5
Rim	8.5-20, 8.0-20, 9.0-22.5
Suspension	Mechanical suspension
Spring Leaf	Width90 mm, Thinckness 13/16mm, 10 Layer
King Pin	JOST brand 2.0 or 3.5 inch bolts type or welding type
Landing Gear	Jost brand, manual operation
Main Beam	Weldding design or special design I beam,connected by bolts and nuts,Q345 carbon steel material
Brake Chamber	4 double chamber
Painting	Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint

Our Advantage
1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers
Main products
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
FAQ
1. MOQ: 1 unit
2. Optional payment terms: T/T or L/C
T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
L/C: 30% payment advance, 70% L/C at sight.
3. Parts of famous brand can be adopted by your requirement, such as WABCO, JOST, BPW, FUWA.
4. Delivery time: Within15 workdays after receiving 30% deposit of T/T
Warranty
1. One year quality guarantee for three key parts axles, beam, landing gear or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
