Drum Mixers Rotating Drum Mixers Drum Mixers for Chemical and Pharmaceutical Industries

Product Description

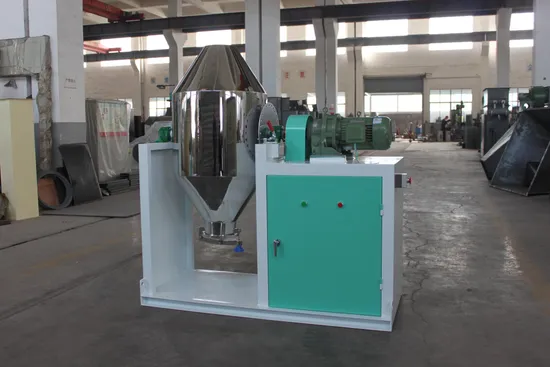

Rotary Drum Mixer
Application: Animalfeed, Aquatic Feed, Additives, Chemical And Medicine Industries, Etc.
Capacity:1000KG/BATCH
Main Power:18.5KW Mixing and mixing mild, high uniformity, no segregation; smooth transmission, low wear; can be equipped with multiple atomizing nozzles for liquid addition; easy maintenance.
Technical Features Of Twin-Shaft Paddle Mixer 1.Short Mixing Time : An average mixing cycle for dry mixing can be as follows: filling 20-30 seconds, mixing 40-60 seconds and discharging 10-20 seconds. This gives a total cycle time of 1.5 - 2 minutes.
2.Higher Throughput : Because of the short mixing time,thus resulting in savings, both in investment costs and space requirements.
3.Gentle Mixing.Shear is very low, As a result extremely fragile materials can be mixed with minimal degradation.
4.Easy Cleaning of Mixer : Side access doors for entry into the mixer interior can be provided. These also provide access for cleaning the mixer internals after completion of the batch.
5.Reliable Scale Up : The simple design and mixing principle ensure that lab test-results can be reliably scaled-up to production levels.
6.Lower Production and Maintenance Costs : The benefits of the mechanical fluidizing zone are gentle mixing, no segregation and very short mixing time. This gives savings in terms of minimal wear and tear and low energy consumption. Maintenance costs are also very low.
Applications Of Twin-Shaft Paddle Mixer
The rotor of the single-axis spiral mixer is composed of two belt-type spirals with opposite driving directions. It has strong stirring ability, short time required for mixing materials, good mixing uniformity, large bottom door, pneumatic discharge, minimal residual Missing material.
Working Principle Of SLHY Single Shaft Screw Mixing Machine Single shaft screw mixer rotor is consist of two aspects pivot near the band or spiral, whose stirring time is short, strong stirring, high yield and high mixing uniformity, and it is ideal equipment for feed, dry powder and compound fertilizer factory.
The machine includes lid, rotor, casing, discharging device and other parts. Raw materials are premix materials are put into mixing room from upper inlet, rotor driven by reducer motor and composed of different directions ribbon screw blade and main shaft. When rotor working, left hand helix and right hand helix will make materials push in the opposite direction so that the materials can be mixed uniformly.

Model Specifications	SLHY0.12	SLHYO 2	SLHY0.5	SLHY1.0	SLHY2.5	SLHY5	SLHY7.5	SLHY10
Power(kw)	0.75	2.2	3.0	7.5	15	30	45	55
Production(kg/p)	50	100	250	500	1000	2000	3000	4000
