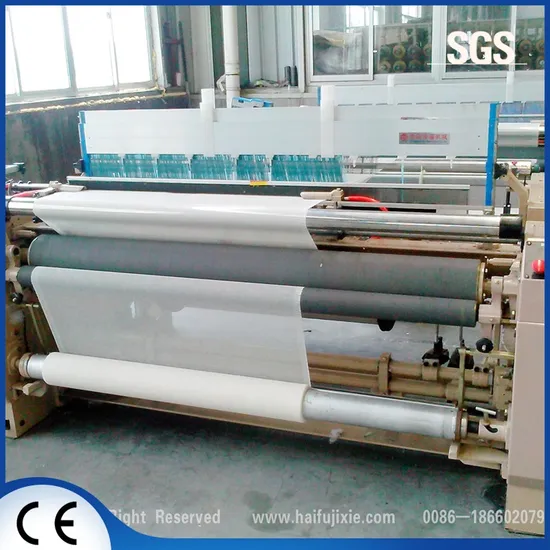

190cm Double Nozzle Cam Shedding Air Jet Loom

Product Description

Product Descriptionnteligence I board Feelers:
Weft insertion system eno yarn by planetary gear Electronic let-off
Product Parameters

Technical Information of Air Jet Loom
Working range	short yarn: Ne 120-Ne 2.5 20dtex-300dtex
Reed width	Nominal: 190; 230; 280; Useful Reeding width; 0-60cm
Weft selection	double color, single color
Motor	super motor with 2.7kw-3.7kw(selected according to the model)
Weft picking	electronic main nozzle + assistant nozzles + profile reed
Shedding	negative cam machine, 8 heddle frames
	positive cam machine, 8 heddle frames
	Dobby(mechanical): upper negative dobby elecronic 2-16 heddle frames(according to the customer' s demand)
Let-off	electronic(ELO) let-off
	positive loosing warp machine
	flange dia: 800mm
Take-up	mechanical take-up (25 pieces/inch-200 pieces/inch)
	electronic take-up (25 pieces/inch-205 pieces/inch)
	upper and down temple(according to variety of the cloth
Beating	short lever four lever beating machine
Yarn storage	electronic tumbler
Selvedge	leno yarn by planetary gear
Waste filling removal	mechanical take-up three roller
Cutter	mechanical cutter
Lubrication	oil take for the main drive parts, thicker oil for centralized lubrication of the rest parts. (pump)
control	weft: double optical feeler
	warp: electronic sensor control
	Selvage: Stop motion for selvage and catch cord yarn
	Packing reason display: four-color lamp display main keyboard displays the infomation
electronic box	the operation of the loom is controlled by microcomputer
	electromagetic fixed brake
	slow-speed inching by variable frequency
	main keyboard

Detailed Photos

Company Profile
Qingdao Haifu Machinery Manufacture Co., Ltd. is specializing in manufacturing and supplying water-jet loom.
In the past 15 years, Haifu machinery has supplied world wide approximately 89000 sets of water jet loom machine, and it was among the first facotry in China making water jet loom, the company now has two facotries, one in Qingdao, the other one in Siyang, jiangsu province, haifu machinery is making sure all the machine given to the customer are at the same quaity, same best quality, we are not only focus on the price, but we are also focus on our brand name, we believe that with our quality always insured, customer will sees it and come back to us with more customers.
Our machine now is running in Uzibekistan, Mexico, India, Turkmenistan, Pakistan. Every one of our customer was atractted by the way we make machines and decided to buy, and of course, satisfied with our machine and try to buy more. Factory workshop

WHY CHOOSE US:
1. We are the first textile machinery enterprise in Qingdao, Shandong Province, China
2.We have 16 years working experience
3. We have our own factory, professional workers and efficient technical support Certifications

Exhibition display

Packaging & Shipping

FAQ
Q: Are you a manufacturer or Tradle Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer reasonable price.
Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation.Besides, we would send you our exposition and relative
information to Dromote a face-to-face meeting if your'd like to.
Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement
