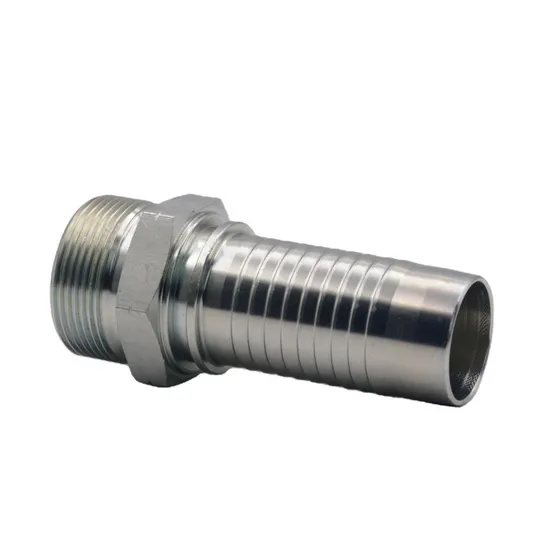

Bsp 60 Cone Male Seat Hose Fitting 12611
| US$0.20-3.25 | 5,000 Pieces (MOQ) |
Basic Info.
Model NO.
12611
Connection
Female
Surface Treatment
Galvanized Sheet
Head Type
Round
Sealing
Yes
Steel
#20 Steel or Al08 Steel or Other as Required
Transport Package
Carton Box
Specification
G1/8-G2
Trademark
Tianyi
Origin
Zhuji, Zhejiang
HS Code
7307990000
Production Capacity
50 Million PCS/Year
Product Description
Product Parameters| 12611 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BSP MALE O-RING SEAL | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Part No. | Thread E | Hose Bore | Dimension | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| DN | Dash | A | C | S1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| 12611-02-03 | G1/8 X28 | 03 | 22 | 10 | 12 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 12611-04-04 | G1/4'X19 | 6 | 04 | 24 | 12 | 14 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 12611-06-05 | G3/8"X19 | 8 | 05 | 26 | 13.5 | 17 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 12611-06-06 | G3/8 X19 | 10 | 06 | 26 | 13.5 | 17 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 12611-06-08 | G3/8 X19 | 12 | 08 | 26.5 | 13.5 | 19 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 12611-08-06 | G1/2 X14 | 10 | 06 | 30.5 | 16 | 22 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 12611-08-08 | G1/2 X14 | 12 | 08 | 30.5 | 16 | 22 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 12611-10-08 | G5/8"X14 | 12 | 08 | 32.5 | 17.5 | 24 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 12611-10-10 | G5/8"X14 | 16 | 10 | 34 | 17.5 | 24 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 12611-12-08 | G3/4"X14 | 12 | 08 | 35.5 | 18.5 | 27 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 12611-12-10 | G3/4'X14 | 16 | 10 | 37 | 18.5 | 27 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 2611-12-12 | G3/4'X14 | 20 | 12 | 36 | 18.5 | 27 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 12611-16-12 | G1"X11 | 20 | 12 | 40.5 | 20.5 | 36 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 12611-16-16 | G"X11 | 25 | 16 | 42.5 | 36 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 12611-20-16 | G1.1/4"X11 | 25 | 16 | 43.5 | 20.5 | 46 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 12611-20-20 | G1.1/4"X11 | 32 | 20 | 44.5 | 20.5 | 46 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 12611-24-20 | G1.1/2"X11 | 32 | 20 | 49 | 23 | 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 12611-24-24 | G1.1/2"X11 | 40 | 24 | 49 | 23 | 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 12611-32-32 | G2 X11 | 50 | 32 | 54.5 | 25.5 | 65 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Note: 1. Above part number adopted for braided hoses; 2. To use for spiral hoses, change part number to 12612-XX_XX | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Manufacture equipment
Packaging & Shipping
Pallet packing
