Guava Juice Manufacturing Machine

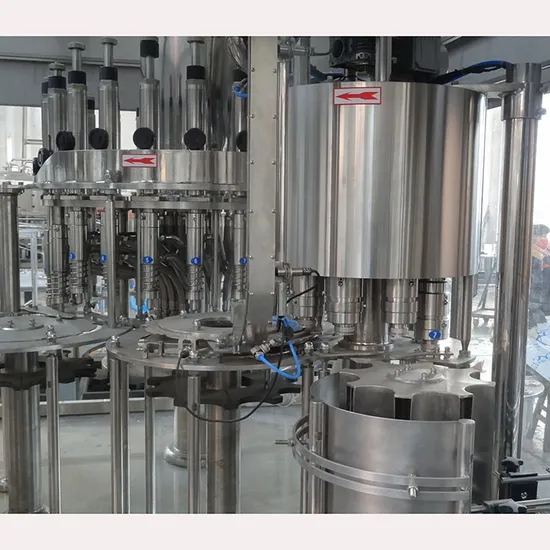

RCGF series mono-block filling machine is a full automatic multi functional combined machine integrating washing filling and capping into one body of the machine. Developed by advanced Korean technology. It is suitable for production of high temperature filled beverage such as fruit juice, fruit tea. By changing some parts, it can also be used for normal temperature filling.
Main Feature:
This machine has applied advanced man-machine interfacial automatic control technology, the key electrical parts are of international famous brands.
Adopt hanging bottleneck locked method, convenient to change the type of bottles.
Constant temperature recycling system can be fixed with automatic temperature control and automatic backflow.
Spring type washing and cleaning grippers are applied, empty bottles can automatically turn over 180° Degree with tracks, twice washing and cleaning for inside and outside, the washing and cleaning efficiency is rather high.
Pressure type filling to position the liquid level, the filling precision is accurate.
Magnetic torque type capping head, assure the cap fastened tightly but no damage.
Adopt filling heads run up and down, the bottles run in one level to make sure the stability of the bottles in and out.
The machine adopts perfect overload protective device can ensure the operator and machine safe.
This machine adopts adjustable frequency converter.
The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
Technical parameter:

Model	RCGF24-24-8
Production capacity	8,000-9,000B/H (basis on 500ml bottle)
Filling precision	≤±5mm(liquid level)
Feedback consumption	≤10%
Polyester bottle specification	bottle diameter:φ50-φ110mm bottle height: 150-320mm
Suitable cap type	plastic screw cap
Water pressure of washing bottle	0.18Mpa
Water consumption for washing bottle	2500Kg/h
Spraying position	6
Dripping bottle position	3.5
Gas source pressure	0.6Mpa
Gas consumption	0.4m3/min
Total power	7.68Kw
Total weight	4000Kg
Overall dimension	2750×2180×2200mm

Origin of Main Parts

item	Part name	Parts photo	Brand name
1	Frequency converters			MITSUBISHI
2	PLC			MITSUBISHI
3	Touch screen			TANWAN
