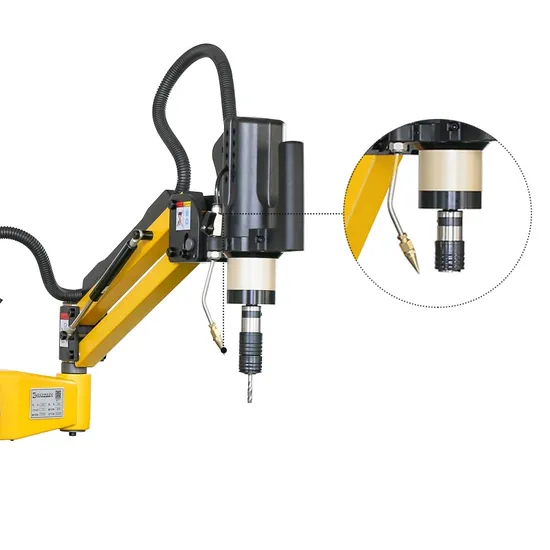

OEM Factory Rocker Arm1500mm Multifunctional CE Tapping Machine
Basic Info.
Model NO.
BG-M16
Structure
Tapping Machine
Layout
Vertical and Horizontal
Controlling Mode
CNC
Number of Shaft
1
Hole Diameter
16mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Powerlypes
The AC Power
Ratde Power
660W
Supply Voltage
220V
The Spindle Ratded Speed
0-550r/Min
Bearing Scope of Thread
M4-M24
Rotation Speed
0-550r/Min
Working Area
Horizontal: 1200mm Vertical: 400mm
Standard Accessories
Tapping Arm, Servo Motor, Reducer, Tap Holder
Transport Package
Wooden Package
Specification
65*65*21cm
Trademark
RSM
Origin
China
Production Capacity
300PCS/Month
Product Description
Product Introduction| BG-M16 | BG-M24 | BG-M30 | BG-M36 | BG-M48 | |
| Tapping Capacity | Steel:M3-M16 | Steel:M4-M20 | Steel:M3-M30 | Steel:M6-M33 | Steel:M12-M48 |
| Aluminum:M3-M16 | Aluminum:M4-M24 | Aluminum:M6-M33 | Aluminum:M6-M36 | Aluminum:M12-M56 | |
| Stainless steel:M3-M16 | Stainless steel:M4-M20 | Stainless steel:M6-M30 | Stainless steel:M6-M33 | Stainless steel:M12-M48 | |
| Rotation Speed | 0-312r/min(Stepless Speed Regulation) | 550r/min(Stepless Speed Regulation) | 200r/min(Stepless Speed Regulation) | 156r/min(Stepless Speed Regulation) | 50-200r/min(Stepless Speed Regulation) |
| Working Area | Horizontal:1100mm | Horizontal:1200mm | Horizontal:1200mm | Horizontal:1300mm | Horizontal:1300mm |
| Vertical:400mm adiustable | Vertical:400mm adiustable | Vertical:400mm adiustable | Vertical:400mm adiustable | Vertical:400mm adiustable | |
