Cattle Licking Mineral Nutritional Block Making Machine

Product Description

cattle licking mineral Nutritional block making machine
parameter of mineral block making press machine

parameter name	Unit	YQ32-63A	YQ32-63B	YQ32-100A	YQ32-100B	YQ32-160	YQ32-200A
Nominal force	KN	630	630	1000	1000	1600	2000
Hydraulic system maximum pressure	Mpa	25	25	25	25	25	25
Max opening height of the slide	mm	500	700	800	800	800	800
Max stroke of the slide	mm	360	400	500	500	500	400
Workbench effective area	mm	410×450	610×500	630×550	750×700	660×600	800×800
Ejector cylinder nominal force	KN	100	100	200	200	400	400
the stroke of the eject	mm	160	160	200	200	200	220
Slider speed	down mm/s	100	100	100	100	100	100
	press mm/s	5-10	5-10	5-10	5-15	5-10	5-10
	return mm/s	90	90	90	90	90	90

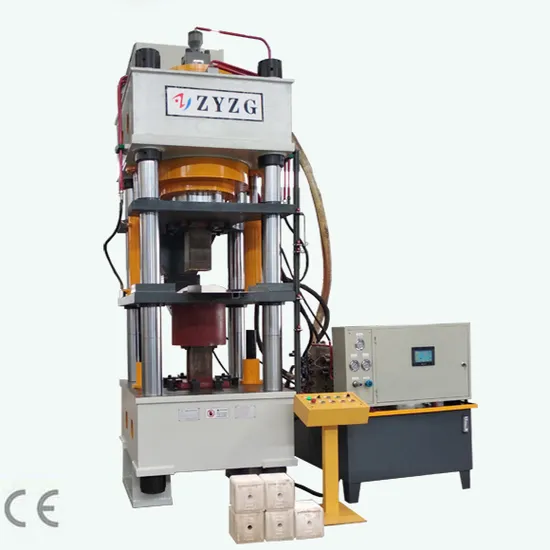

Performance characteristics of cattle and sheep brick hydraulic machine:
The three-beam four-column structure is optimized, designed by computer, simple, economical and applicable. The hydraulic control system adopts the cartridge valve integrated system, which has reliable action, long service life and small hydraulic impact, which reduces the connection pipeline and leakage point.
Characteristic of salt mineral block machine:
The cattle licking mineral nutritional block making machine adopts advanced PLC hydraulic transmission technology, with salt as the carrier, adding appropriate amount of mineral nutrients, and crushing and stirring the raw materials by high pressure to make salt bricks, rich in nutrients, greatly improving cattle after eating cattle and sheep. The palatability of sheep, long-term foraging can increase the weight of cattle and sheep, increase the reproduction rate and survival rate, and greatly help the body of cattle and sheep.
mineral brick making machine Usage:
Salt brick is through the material, broken, drying, mixing, pressing, packaging and a series of process production. One of the most important aspects is to lick the salt pressure, the important equipment used is lick salt briquetting machine.
Our company produces lick salt briquetting machine is a hydraulic briquetting machine equipment with high pressure, can be one-time molding, pressing density, pressed out of the product appearance bright and clean appearance.
pressed product:
The salt Licking Block Press Machine is a series of animal husbandry products of hydraulic briquetting machine launched by our company. It is specially designed for the development of cattle and sheep livestock industry and is a professional production equipment for mineral nutrient salt blocks on the modern market.
Packaging and shipping of Sheep licks Mineral Salt Block Press machinery:
1. inner layer is made of plastic film rust-proof packaging,
2. the embossing machine outer layer is reinforced by reinforcing the synthetic board,
3. separate container can be used.
other as requirement
