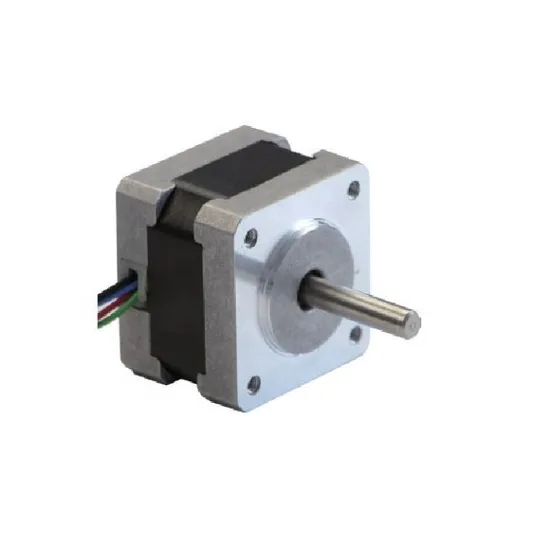

Dia. 35mm NEMA 14 Step Angle 0.9 Degree 5 Phase Hybrid Stepper Motors for Electronic Processing Equipment

Product Description

Product Description General Specification: The hybrid stepper motor combines the advantages of permanent magnet and reactive type, and is an electromechanical component stepper motor that can convert electric pulse signals into angular or linear displacement. It is divided into two-phase, three-phase, and five phases: the two-phase stepper angle is generally 1.8 °. As the number of phases increases, the stepper angle decreases and the accuracy improves. This type of stepper motor is the most widely used in AGV, home appliance, barrier, auto door,LIDAR,robotics,logistics,green energy, medical, textile, office automation, financial equipment and agriculture etc. Length, shaft, phase, step angle,current, torque and so on can be customized. Details Images Specification

MODEL	Length (mm)	Step Angle	Resistance (Ω)	Current (A)	Voltage (V)	Hold Torque (N.cm)	Leads (pcs)	Rotor initia (g.c)	Weight (kg)
35HS020MF10JX	20	0.9°	10	0.4	4	4	4	10	0.11
35HS022MF25JX	22	0.9°	25	0.4	11.25	7	4	11	0.12
35HS025MF45JX	25	0.9°	45	0.45	13.5	10	4	13	0.15
35HS027MF450X	27	0.9°	4.5	0.3	2.25	7	4	14	0.16
35HS033MF12JX	33	0.9°	12	0.55	6	15	4	20	0.18

Can be customized please contact us with your customized specifications for us to recommend you best resolution with
accurate price high efficiently. About us:
Shanghai Meichu Industrial Co., Ltd. is a professional supplier of various micro motors as well as motor
related products more than 10 years.Our products includes various DC motors, gear motors, AC motors,
fan motors and electric actuators etc...We also offer solution of transmission design, structrual design
and product development plan. We are good at making both standard and non-standard micro motors.
Our motors are widely used in cars, home appliance, medical device, dental equipment, robotics, smart
products,electricl equipment, sports apparatus,conveying machinery etc..
Our products meet the standards of CE, ISO 9001, UL, REACH, RoHS,ETL and SGS.
We pay close attention to technology, quality,standardization and process management.
We always operate in brand thinking way and take addressing customer pain points as our responsibility.
"First Responsibility Then Business. "is our unchanged commitment.
