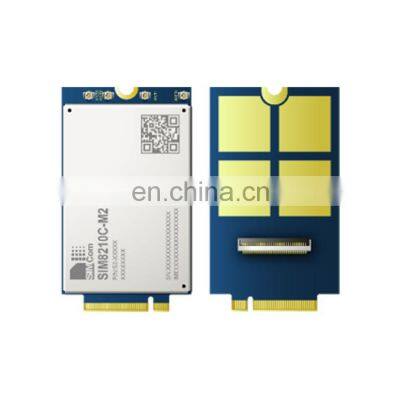

1.5Gbps/1Gbps Multi-Band 5G NR/LTE-FDD/LTE-TDD GNSS Module SIMCom SIM8210C-M2 SIM8210C

Product Description

Product Description
DescriptionSIM8210C-M2● The SIM8210C-M2 is the Multi-Band 5G NR/LTE-FDD/LTE-TDD module which supports R15 5G SA up to 1.5Gbps data transfer.● It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.● The SIM8210C-M2 adopts M.2 form factor, TYPE 3052-S3-B. AT commands of SIM8210C-M2 are compatible with SIM8200X-M2 series modules. This also minimizes the investments of customers and enables a short time-to-market.It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.Product Advantages● Standard M.2 interface● High throughput data communication● AT commands of the SIM8210C-M2 are compatible with SIM7912G/SIM8200X-M2 series modulesProductSIM8210C-M2Form FactorM.2Dimensions(mm)52.0*30.0*2.3Frequency Bands5G-NRn1,n3,n5,n7,n8,n20,n28,n38,n40,n41,n77,n78,n79LTE-FDDB1,B3,B5,B7,B8,B20,B28LTE-TDDB34,B38,B39,B40,B41,B42,B43,B48GNSS●Temperature-30℃ ~ +70℃Electrical FeaturesSupply Voltage(V)3.135 ~ 4.4Data TransferSub-6G1.5Gbps(DL)/1Gbps(UL)LTE400Mbps(DL)/100Mbps(UL)Software FeaturesProtocolTCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0TLS●File System●FOTA●Android RILAndroid 6/7/8/9USB DriverMicrosoft Windows Win7/Win8/Win10/Linux/AndroidMBIMWin8/Win10NDISLinux/Win7/Win8/Win10Firmware UpgradeUSBInterfacesSIM Card1.8V/2.95VUSB●PCM●I2C●Diversity Receiver●CertificationsRegulatoryCCC*/JATE*/TELEC*/CE(RED)*/SRRC*/CTA*/RoHS*/REACH*/RCM*Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
