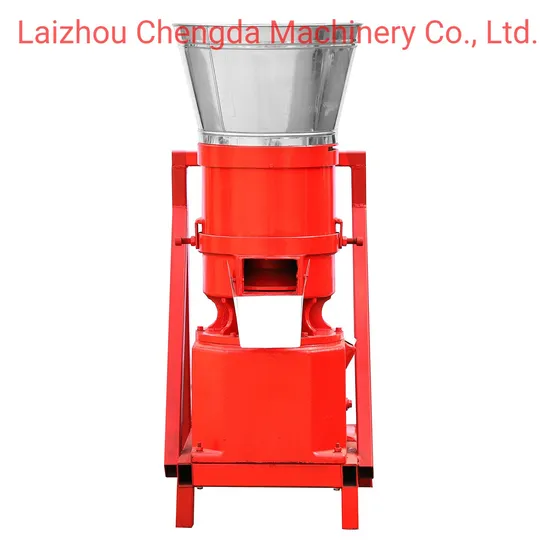

Pto Driven Wood Pellet Machine with CE for Germany Market

Pto Driven Wood Pellet Machine with CE for Germany Market

US$500.00-5,000.00 1 Set (MOQ)

Basic Info.

Model NO.
KL360P
Automatic Grade
Automatic
Controlling Mode
CNC
Energy Saving
Energy Saving
Certification
CE, ISO
Warranty
1 Year
Customized
Customized
Condition
New
Color
Multi Color
Pellet Length
Adjustable
Pellet Moisture
Below 8%
Capacity
100-1500kg/H
Rotation Type
Roller Moving
Die Diameter
230mm to 400mm
Pellet Shape
Cylinder
Transport Package
Plywood Box
Specification
2.5mm to 10mm wood pellet
Trademark
chengda
Origin
China
HS Code
8479300000
Production Capacity
5000 Piece Per Year

Packaging & Delivery

Package Size
77.00cm * 56.00cm * 102.00cm
Package Gross Weight
500.000kg

Product Description

Product Description
Flat Die Pellet Machines Our flat die pellet machines can be devided into two series, KL series and MKL series pellet machines. Our
KL and MKL series pellet machins can both make feed pellets and wood pellets, but the capacity of wood pellets is
lower than that of making feed pellets. Our MKL series pellet machines has the special design for making
wood sawdust pellets.
Our pellet machines can be driven by electrical motor, diesel engine, gasoline engine and tractor for your
choices. All of our PTO series pellet mills are driven by the tractor.
PTO Tractor Driven pellet machine--KL200P to MKL395P PTO driven wood pellet mill


1.Model:KL200P TO MKL395P
2. Output: 220-1500kg/h.
3. Power: Driven by tractor.
4. The size of the final pellets: 2.5-10 mm, if you make animal feed pellets, 3-8 mm is better. If you make the wood pellets, 6 and 8 mm is better.
5. Pellet length :which can be adjusted by adjusting knife within range of 1-5 cm.
6. We sell the pellet machine pto without the tractor.
7. Weight(without of thr tractor): 230kg



All KL-P Series Pellet Machine
Model No. Match power Feed output Wood output N/G weight(kg) Pellet diameter Packing Size(cm)
KL120P 8-150HP 60-100 40-60 80/100kg 2.5-10mm 75*35*65
KL150P 8-150HP 90-120 50-90 95/115kg 2.5-10mm 76*42*71
KL200P 8-150HP 150-200 100-150 140/160kg 2.5-10mm 77*56*102
KL230P 8-150HP 200-300 150-220 150/180kg 2.5-10mm 77*56*102
KL260P 8-150HP 400-600 220-280 200/230kg 2.5-10mm 77*56*115
KL300P 8-150HP 600-800 280-320 260/264kg 2.5-10mm 85*56*115
KL360P 8-150HP 700-900 300-400 300/330kg 2.5-10mm 87*65*116
KL400P 8-150HP 900-1100 400-550 400/420kg 2.5-10mm 95*65*116

The Specific Parameters of MKL-P Series Pellet Mills
Model Power Die Diameter Die Hole Specification Feed Capacity Saw Dust Capacity
MKL225P 18-28HP 230mm 2.5-10mm 300-400kg/h 150-190kg/h
MKL229P 28-45HP 260mm 2.5-10mm 400-600kg/h 220-280kg/h
MKL295P 45-55HP 300mm 2.5-10mm 600-800kg/h 300-360kg/h
MKL335P 50-150HP 360mm 2.5-10mm 700-900kg/h 300-380kg/h
MKL395P 50-150HP 400mm 2.5-10mm 900-1200kg/h 400-550kg/h



Advantages of PTO Pellet Machines 1).Simple structure, wide adaptability, covers a small area, low noise. High efficient and low consumption
2).Powder feed, grass meal doesn't need or with a little liquid, then can be making for granulation.So basic to the
moisture content of grain feed granulating before the moisture of the materials, more conducive to storage.
3).Chicken, duck, fish, cattle.pig, birds, dog, etc, than the mixed powder feed can obtain higher economic benefits.
4).Dry processing, the production of feed particle high hardness, smooth surface, internal curing, can improve the
digestion and absorption of nutrients. Widely Applications of PTO Pellet Mills
It is used for pressing materials such as grain, firewood, stalk, tree branches, wood meal, fruit hull, palm and tailing of
cotton plant, and widely used for recycle of livestock farms, biomass fuel plant, power plant, wood processing plant,
fertilizer plant, chemical plant, food plant and cotton plant. PTO pellet machines can be driven by tractor more easily,
work outside.
The raw material you can choose:
KL Series and MKL series Pellet Machines Rollers & Moulds
Why Choose Our PTO Pellet Mill
Compared with other types of pellet mill, PTO wood pellet mill are more small in volume and light in weight, the machine is movable. PTO driven pellet mill is powered by the tractor and others are powered by engines which makes the machine is more suitable for farm use. Relatively high working efficiency. The PTO driven pellet mill have a relatively high working efficiency than other types of wood pellet mills considering the energy it use.
1. We provide 1 year guarantee.
2. We provide English manual and video for installation & operation.
3. If required, we could send technicians for installation and commissioning, training.
4. We provide feed formula and free spare parts.
COMPANY INTRODUCTION
Laizhou Chengda Machinery Co., Ltd was founded in 1992, which is a high tech enterprise that integrates new product design, development, manufecturing and international trade business.
Main products: flat die pellet mill, vertical ring die pellet mill, wood chipper, hammer mill, pellet cooler and cutting wood machine etc.. Our company always takes the product quality and credibility as the foundation of us present and tomorrow survival and development. We always adhere to the "quality and reputation first" concept.And we have got the 'quality advanced company" and "quality trustworthy company" and the "honorary company". we are AAA level enterprise to be named by the national quality, reputation and service department.
Our company is located in Laizhou Bay, near to Qingdao seaport. It's convient in sea, road, and air transportation, we have very perfect import and export service system in China. At the same tine , we have a widely range of commodity information network, partners all over the world. Believe our sincere cooperation will creat a better tomorrow
RFQ
1. How to order?
After you decide to purchase, we will send you proforma invoice with our bank information,
bring this PI to the bank, and ask to make T/T for the deposit. For single set, your machine can be ready within 7-10 working days after we getting the deposit, we will send to the port and deliver to you by sea.
-In case for more handling charges, you can transfer 100% of the payment, we can arrange the products and shipping under your allowance.
2. Related products?
PTO type, diesel type, electric type.
3. Can i order 1 set for sample?
Yes, Sample acceptable, You can test the quality of sample.
4. How do we visit you and your factory?
First of all, welcome you or any appointed agent to visit and inspect our factory.
You can fly to Shanghai airport, then come from Shanghai railway station to weifang city.
You can fly to Qingdao airport, then we can pich you up there.
We can pick up you at Qingdao airport or Weifang railway station.
Please kindly let us know your schedule in details, so we can arrange everything for you.
5. Why you choose us?
As manufacturer, our products have excellent quality and competitive price.
Good after-sale services and 12 months warranty are visible.
Strictly testing and checking before shipping.
25 years experience in manufacturing and 10 years exporting experience.
Doing OEM for many famous brand.
