ZQ3040 mechanical radial drilling machine for metal drill
| US$2,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX3040
Controlling Mode
Hydraulic
Number of Shaft
0
Hole Diameter
40mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max. Drilling Capacity
40mm
Power
mechanicl
Spindle Taper
Mt4
Spindle Speed
80-1200rpm
Transport Package
Fumigated Exporting Standard Wooden Case
Specification
CE, SGS, ISO9001: 2000
Trademark
WMT or customized logo
Origin
Chizhou, Anhui, China
HS Code
84592900
Production Capacity
50 Sets Monthly
Product Description
Main specificaiton for Radial drilling machine model ZQ3040
| Technical parameters | ZQ3040×10 |
| Max Drilling Diameter(mm) | steel 32 /iron 40 |
| Spindle center to column (mm) | 360-1300 |
| spindle box travel (mm) | 650 |
| Spindle nose to table (mm) | 260--1050 |
| Spindle travel (mm) | 200 |
| Spindle taper(Morse) | 4 |
| Spindle speed range (r/min) | 75/135/240/350/590/1100 |
| Spindle speeds series(mm/r) | 0.10/0.16/0.25 |
| Radial rotation Angle | 360° |
| Main motor power( kw) | 2.2 |
| Lifting Motor Power ( kw) | 0.75 |
| Machine weight (kgs) | 1400 |
| Machine overall size (L*W*H mm) | 1612×705×2070 |
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.

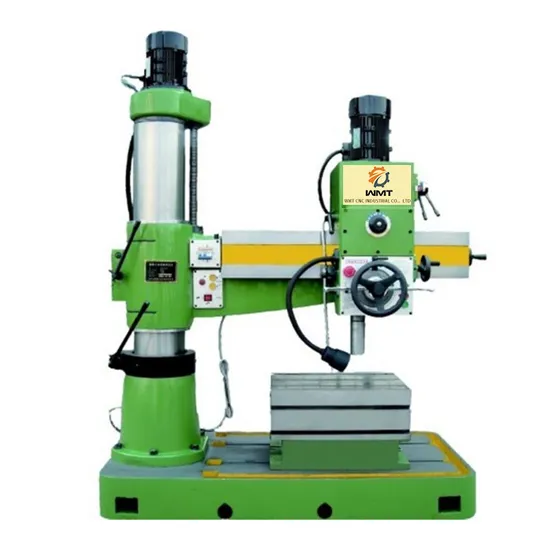

Detailed pics. for ZQ3040
